Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LONGTENG |
| Certification: | TUV CE, ABS, DB, ISO9001 |
| Model Number: | ER70S-3 (ER50-3) |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | one pallet |
| Price: | USD 1 |
| Packaging Details: | Neutral box/ LT color box/OEM brand box |
| Delivery Time: | 15 WORKING DAYS |
| Supply Ability: | 1,200,000 TON PER YEAR |
|
Detail Information |
|||
| Product Name: | CO2 Gas Shielded Welding Wire ER70S-3 | Model: | ER70S-3 |
|---|---|---|---|
| Brand: | LONGTENG | Diameter: | 0.8/0.9/1.0/1.2/1.6mm |
| Weight: | 1/5/15/20kg | Surface: | Cooper Plating |
| Spool Material: | Black Plastic Spool | Packing: | Color Box |
| OEM: | Accept | Diameter Of Spool: | 100/200/270/300mm |
| High Light: | er70s 3 mig welding wire .035 44lb,AWS A5.18 er70s 3 mig welding wire,Er70s-3 Welding Wire |
||
Product Description

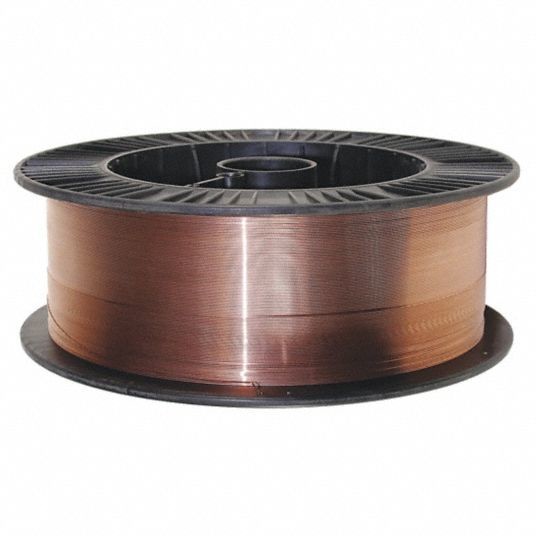

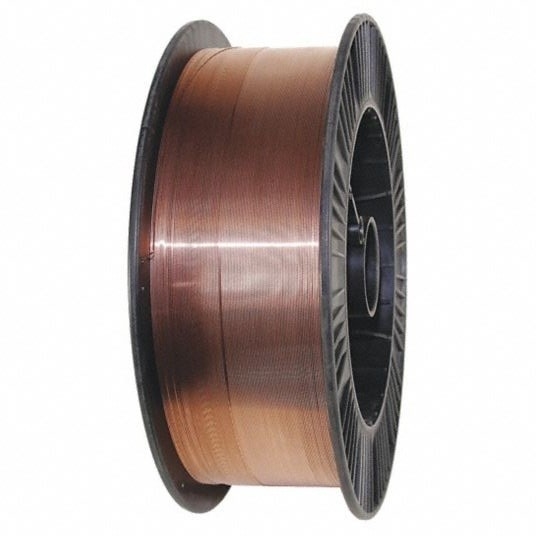

ER70S-3 0.8/1.0/1.2/1.6MM SOLID WELDING WIRE
Specification:LT·ER50-3 is a kind of CO2 gas-shielded welding wire. It has excellent welding performance, smooth and beautiful bead and low spatters.
LT·ER50-3 Conform to Standard :GB/T 8110 ER50-3
Equivalent to : JIS YGW16 / AWS A5.18 ER70S-3
Conform to Standard :ISO 14341-B-GS3
Purpose:
1.Used for welding low-carbon steel & thin plates.
2. Used for welding low-carbon steel parts with thorough surface treatment.
Chemical Composition(%)
| Chemical Composition | C | Mn | Si | S | P | Ni | Cr | Mo | V | Cu |
| Guarantee Value | 0.06~0.15 | 0.90~1.40 | 0.45~0.75 | ≤0.025 | ≤0.025 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.03 | ≤0.50 |
| General Result | 0.074 | 1.15 | 0.63 | 0.021 | 0.02 | 0.023 | 0.021 | 0.023 | 0.004 | 0.12 |
| Test Item | Rm(MPa) | ReL/Rp0.2(MPa) | A(%) | KV2(J) |
| -20℃ | ||||
| Guarantee Value | ≥500 | ≥420 | ≥22 | ≥27 |
| General Result | 525 | 430 | 28 | 103,97,100 |
| Size(mm) | Current range (A) | GAS flow rate(L/min) |
| Φ0.8 | 50~100 | 15 |
| Φ1.0 | 50~220 | 15~20 |
| Φ1.2 | 80~350 | 15~25 |
| Φ1.6 | 170~550 | 20~25 |
