Lr Steel Grade DH36 Bulb Flats For Shipbuilding

Product Details:
Place of Origin: CHINA,CHANGSHU
Brand Name: LONGTENG
Certification: ABS, CCS,LR,KR,NK,RINA,BV,DNV-GL,RMRS
Model Number: HP80-HP430
Payment & Shipping Terms:
Minimum Order Quantity: 25MT
Packaging Details: SEAWORTHY OF PACKING
Delivery Time: FORM STOCK, OR 45 DAYS AFTER ORDERING
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 60,000MT/MONTH

Detail Information

PRODUCT NAME: GRADE DH36 LR BULB FLAT FOR SHIPBUILDING GRADE: A,B,D,E,AH32,AH36,DH32,DH36,EH32,EH36
CLASSIFICATION SOCIETY: ABS, CCS,LR,KR,NK,RINA,BV,DNV-GL,RMRS SURFACE: BALCK OR PRIMER
PRODUCTION STANDARD: EN10067:1997 APPLICATION: SHIPBUILDING HULL STRUCTURE
High Light:

Lr Steel Grade Bulb Flats For Shipbuilding

,

Steel Grade DH36 Bulb Flats For Shipbuilding

,

LR Grade AH36 Shipbuilding Steel Bulb Flat Bar

Product Description

GRADE DH36 LR BULB FLAT FOR SHIPBUILDING



Bulb flats are the most cost-effective, efficient and corrosion-resistant solution for plate stiffening. They deliver buckling resistance at a lower weight than flat bars or angles and thanks to their rounded edges, there is no need for edge grinding before painting, saving time and money.



The bulb flat are mainly used on shipbuilding, bridge construction, offshore plateform.



Specification:



Size(mm)  HP80-HP430
Standard:  EN10067:1997
Grade:  A,B,D,E,AH32,AH36,DH32,DH36,EH32,EH36
 S235JR, S235J0, S235J2
 S275JR, S275J0, S275J2
 S355JR, S355J0, S355J2, S355K2
Certification:  ABS, CCS,LR,KR,NK,RINA,BV,DNV-GL,RMRS
 CE Certification
Length:  6m-20m, according to customer's request
Application:  Hull Structure , Bridge Structure, Offshore Platform







Sizes of Bulb Flat:

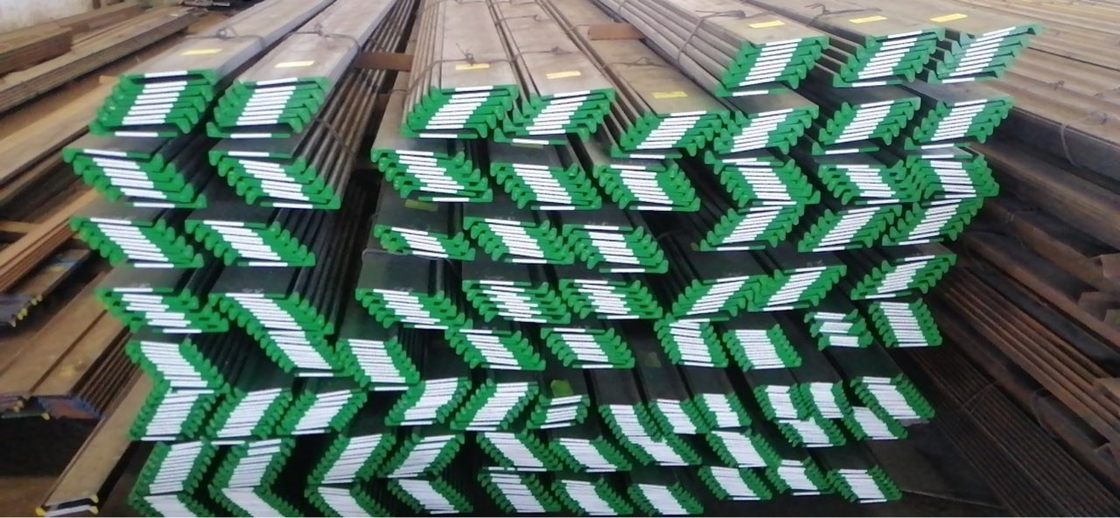

Lr Steel Grade DH36 Bulb Flats For Shipbuilding 0

Size(mm) Unit Weight(kg/m) Lead time
80*6 4.88 every 6 months one production.
Keep stock.
80*7 5.51
100*6 6.08 45-60 days
100*7 6.86 45-60 days
100*8 7.65 45-60 days
120*6 7.32 45-60 days
120*7 8.26 45-60 days
120*8 9.20 45-60 days
140*7 9.75 45-60 days
140*8 10.85 45-60 days
140*9 11.95 45-60 days
140*10 13.05 45-60 days
160*7 11.46 45-60 days
160*8 12.72 45-60 days
160*9 13.97 45-60 days
160*10 15.23 45-60 days
160*11 16.49 45-60 days
180*8 14.80 45-60 days
180*9 16.22 45-60 days
180*10 17.63 45-60 days
180*11 19.04 45-60 days
200*9 18.57 45-60 days
200*10 20.14 45-60 days
200*11 21.71 45-60 days
200*12 23.28 45-60 days
220*10 22.77 45-60 days
220*11 24.50 45-60 days
220*12 26.22 45-60 days
240*10 25.50 45-60 days
240*11 27.39 45-60 days
240*12 29.27 45-60 days
260*10 28.35 45-60 days
260*11 30.39 45-60 days
260*12 32.43 45-60 days
280*11 33.50 45-60 days
280*12 35.70 45-60 days
280*13 37.90 45-60 days
280*14 40.10 45-60 days
300*11 36.70 45-60 days
300*12 39.09 45-60 days
300*13 41.44 45-60 days
320*12 42.60 45-60 days
320*13 45.09 45-60 days
320*14 47.60 45-60 days
340*12 46.20 45-60 days
340*13 48.86 45-60 days
340*14 51.50 45-60 days
370*13 54.70 4 months per production.
Keep stock.
370*14 57.60
370*15 60.50
400*14 63.96
400*15 67.10
400*16 70.20
430*14 70.60 1 or 2 years per production.
Keep stock.
430*15 73.90
430*17 80.70
430*19 87.40

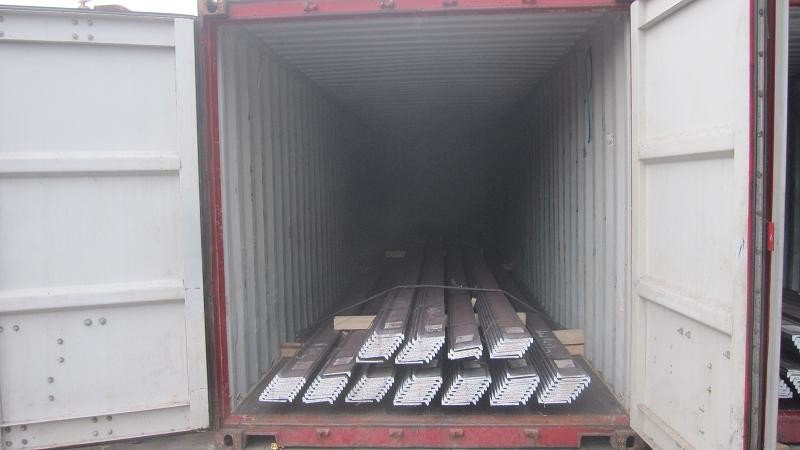

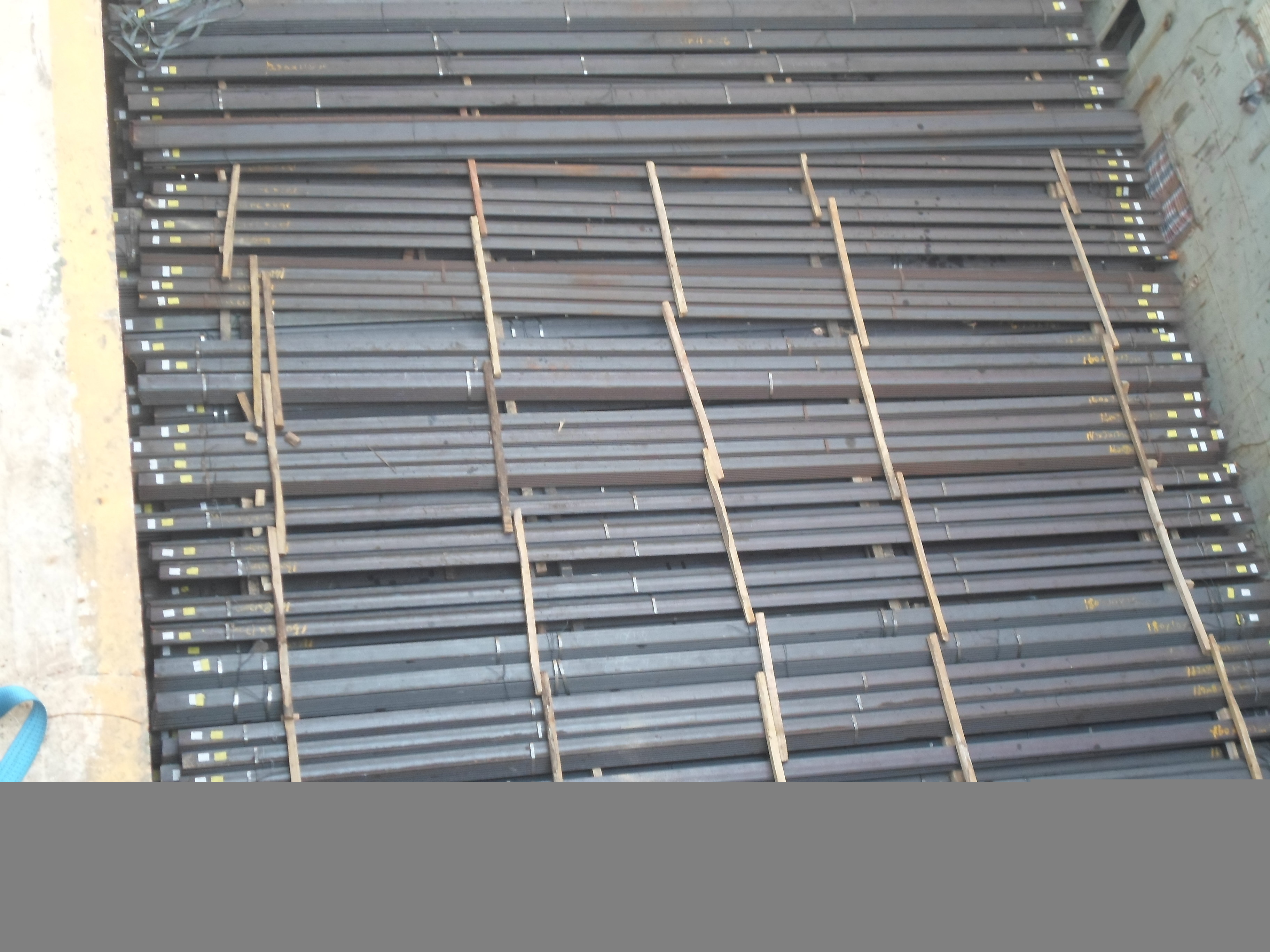

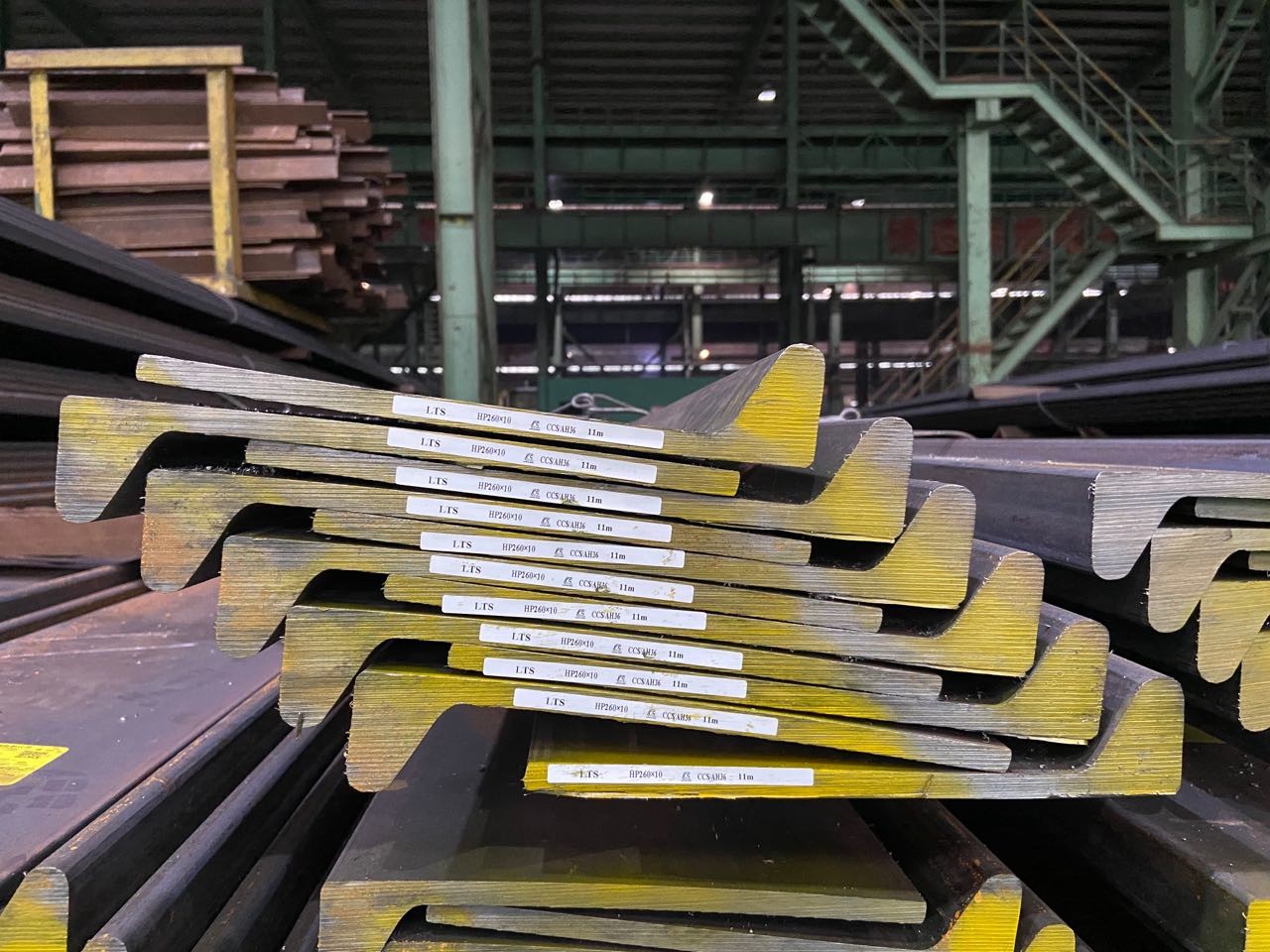

Arrange perfect logistics , by bulk carrier or by contianers:



Lr Steel Grade DH36 Bulb Flats For Shipbuilding 1





Lr Steel Grade DH36 Bulb Flats For Shipbuilding 2

Lr Steel Grade DH36 Bulb Flats For Shipbuilding 3
