Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LONGTENG |
| Certification: | TUV CE, ABS, DB, ISO9001,CCS |
| Model Number: | E7016 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | one pallet |
| Price: | USD 1 |
| Packaging Details: | Neutral box/ LT color box/OEM brand box |
| Delivery Time: | 15 WORKING DAYS |
| Supply Ability: | 1,200,000 TON PER YEAR |
|
Detail Information |
|||
| Product Name: | Carbon Steel Electrodes E7016 LT·J506 | Model: | E7016 |
|---|---|---|---|
| Brand: | LONGTENG | Diameter: | 2.0/2.5/3.2/4.0/5.0 |
| Weight: | 5kg | Type Of Coating: | Low-Hydrogen |
| Packing: | Plastic Box | OEM: | Accept |
| High Light: | Longteng Aws E7016 Welding Electrode,Aws E7016 Welding Electrode With High Carbon Content,welding electrode e7016 |
||
Product Description

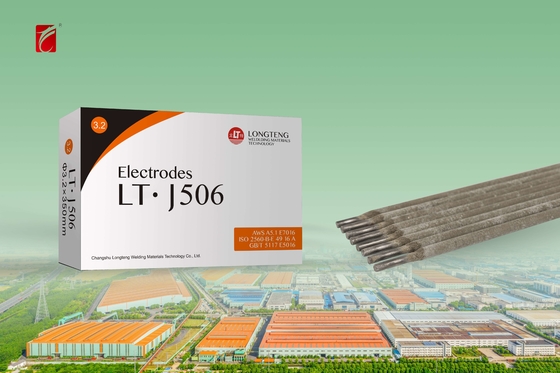

E7016 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes
Conform to Standard
GB/T 5117 E5016
AWS A5.1 E7016
ISO 2560-B-E 49 16 A
Purpose:It is applied in welding medium-carbon steel and low-alloy structures such as 16Mn, 09Mn2Si, 09Mn2V and the steels used in shipbuilding such as A, B, D, E.
Specification:J506 is low-hydrogen potassium coated carbon steel electrode. It has very good welding usability that enables it to operate on AC/DC, performs all-position welding, has stable arc, removal of slag is easy and has low spatter. The deposited metal has good mechanical performance and crack-resistance
Chemical Composition(%)
| Chemical Composition | C | Mn | Si | S | P | Ni | Cr | Mo | V |
| Guarantee Value |
≤ 0.15 |
≤ 1.60 |
≤ 0.75 |
≤0.035 | ≤0.035 |
≤ 0.30 |
≤ 0.20 |
≤ 0.30 |
≤ 0.08 |
| General Result | 0.080 | 1.05 | 0.51 | 0.012 | 0.020 | 0.012 | 0.030 | 0.007 | 0.016 |
Mechanical Properties of Deposited Metal
| Test Item | Rm(MPa) | ReL(MPa) | A(%) | KV2(J) | |
| -20℃ -30℃ | |||||
| Guarantee Value | ≥490 | ≥400 | ≥20 | ≥47 | ≥27 |
| General Result | 540 | 430 | 32 | 175 | 169 |
Reference Current(AC,DC+)
| Diameter(mm) | Φ2.5 | Φ3.2 | Φ4.0 | Φ5.0 |
| Amperage(A) | 60~100 | 80~140 | 110~210 | 160~230 |
Notes:
1. The electrode must be preheated at the temperature of 350°C for 1 hour. Preheat the rod whenever it is used.
2. The impurities such as rust, oil stains and moisture must be cleared off of the work piece.
3.Short arc is required to perform welding. Narrow weld path is preferred.
