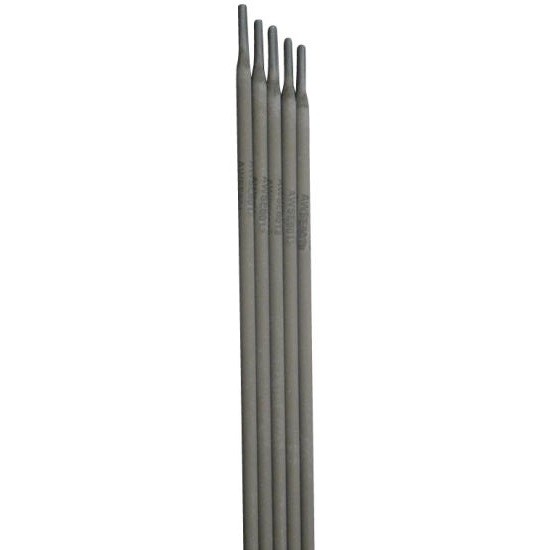

J507 E7015 Mild Steel Welding Electrodes 2.5mm

Product Details:
Place of Origin: CHINA
Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS
Model Number: E7015
Payment & Shipping Terms:
Minimum Order Quantity: one pallet
Price: USD 1
Packaging Details: Neutral box/ LT color box/OEM brand box
Delivery Time: 15 WORKING DAYS
Supply Ability: 1,200,000 TON PER YEAR

Detail Information

Product Name: Carbon Steel Electrodes E7015 Model: E7015
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Low-Hydrogen
Packing: Plastic Box OEM: Accept
High Light:

welding rods e7015

,

E7015 Welding Electrode

,

E7015 Low alloy steel welding electrode

Product Description

E7015 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes



Specification:AWS A5.1 E7015 is low-hydrogen sodium coated carbon steel electrode. It must be operated on DCEP. It has very good welding usability that enables it to perform all-position welding, has stable arc, removal of slag is easy and has low spatter. The deposited metal has good mechanical performance and crack-resistance, which offers good low temperature toughness.



Conform to Standard

GB/T 5117 E5015

AWS A5.1 E7015

ISO 2560-B-E 49 15 A



Purpose:It's widely used for welding key medium-carbon steel and low-alloy steel structures (under pressure and moving loads), such as 16Mn, 09Mn2Si, 09Mn2V and A, B, D and E steel for ships, etc., and also used for welding on thick plates and hard-to-weld carbon steel structures.



Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Mo V
Guarantee Value

0.15

1.60

0.90

≤0.035 ≤0.035

0.30

0.20

0.30

0.08

General Result 0.082 1.10 0.58 0.012 0.021 0.011 0.028 0.007 0.016





Mechanical Properties of Deposited Metal(Shielding Gas:CO2)

Test Item Rm(MPa) ReL(MPa) A(%) KV2(J)
-20℃ -30℃
Guarantee Value ≥490 ≥400 ≥20 ≥47 ≥27
General Result 550 450 32 150 142

X-Ray Radio-graphic Test Requirements:Grade I


Reference Current(DC+)

Diameter(mm) Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 60~100 80~140 110~210 160~230



Notes:

1. The electrode must be preheated at the temperature of 350°C for 1 hour. Preheat the rod whenever it is used.

2. The impurities such as rust, oil stains and moisture must be cleared off of the work piece.

3.Short arc is required to perform welding. Narrow weld path is preferred.
