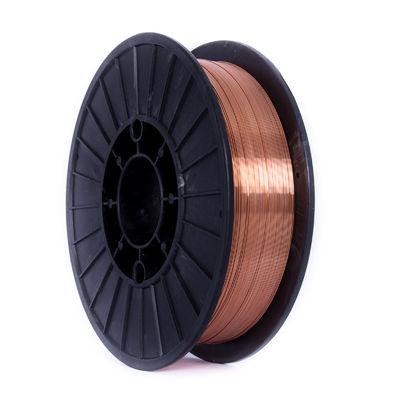

5kg Mig Welding Wire 0.035 1mm ER110S-G

Product Details:
Place of Origin: CHINA
Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001
Model Number: ER110S-G (ER80-G)
Payment & Shipping Terms:
Minimum Order Quantity: one pallet
Price: USD 1
Packaging Details: Neutral box/ LT color box/OEM brand box
Delivery Time: 15 WORKING DAYS
Supply Ability: 1,200,000 TON PER YEAR

Detail Information

Product Name: CO2 Gas Shielded Welding Wire ER110S-G Model: ER110S-G
Brand: LONGTENG Diameter: 0.8/0.9/1.0/1.2/1.6mm

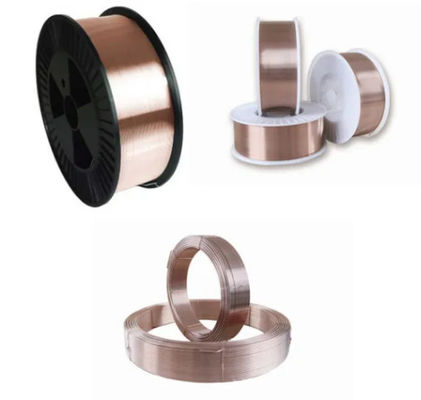

Weight: 1/5/15/20kg Surface: Cooper Plating
Spool Material: Black Plastic Spool Packing: Color Box
OEM: Accept Diameter Of Spool: 100/200/270/300mm
High Light:

5kg Mig Welding Wire 0.035 1mm

,

5kg Mig Welding Wire 0.035 1mm ER110S-G

,

0.035 Mig Wire

Product Description

ER110S-G 0.8/1.0/1.2/1.6MM SOLID WELDING WIRE



ER110S-G is a low alloy wire with NiCrMo. It is suitable for single or multi pass welding of low alloyed steels. AWS A5.28 ER110S-G, EN ISO 16834-A-G 69 2 M21 Mn3Ni1CrMo.



ER110S-G Conform to Standard :GB/T 8110 ER80-G

AWS ER110S-G



Specification: LT·ER80-G is a kind of high strength gas-shielded welding wire. The mixed gas Ar+20% CO2 can be used as shielding gas. It has soft arc, stable burning and low spatters. The bead has higher impact toughness.



Purpose:Suitable for welding high strength structures with tensile strength of 790MPa. It can be used for welding high strength structures with tensile strength of 790MPa. It can be used for welding some key structures, such as pressure vessels, construction machinery, and hoisting machinery.



Chemical Composition(%)



Chemical Composition C Mn Si S P Cr Ni Mo Cu
Guarantee Value ≤0.11 1.40~ 0.40~ ≤0.025 ≤0.025 0.25~ 1.20~ 0.20~ ≤0.50
1.85 1 0.6 2.4 0.6





Mechanical Properties of Deposited Metal(Ar+20%CO2)
Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%) KV2(J)
-20℃
Guarantee Value ≥790 ≥690 ≥17 ≥27
General Result 840 730 24.5 85,93,75


Notes:

1. Shield gas: Must ensure not to operate with impurity shield Gas

2. Operation flow rate of shield gas: 20-25L/min.

3. Electrode extension: 15-25mm
