ER110S-G ER80-G Gmaw Welding Wire Mig Mag 1.0mm

Product Details:
Place of Origin: CHINA
Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001
Model Number: LT·ER80-G
Payment & Shipping Terms:
Minimum Order Quantity: one pallet
Price: USD 1
Packaging Details: Neutral box/ LT color box/OEM brand box
Delivery Time: 15 WORKING DAYS
Supply Ability: 1,200,000 TON PER YEAR

Detail Information

Product Name: High Strength Steel Solid Welding Wire LT·ER80-G Model: LT·ER80-G (ER110S-G)
Brand: LONGTENG Diameter: 0.8/0.9/1.0/1.2/1.6mm
Weight: 1/5/15/20kg Surface: Cooper Plating
Spool Material: Black Plastic Spool Packing: Color Box
OEM: Accept Diameter Of Spool: 100/200/270/300mm
High Light:

ER80-G Gmaw Welding Wire Mig


Gmaw Welding Wire Mig Mag 1.0mm 0.040"


er110s-g welding wire

Product Description

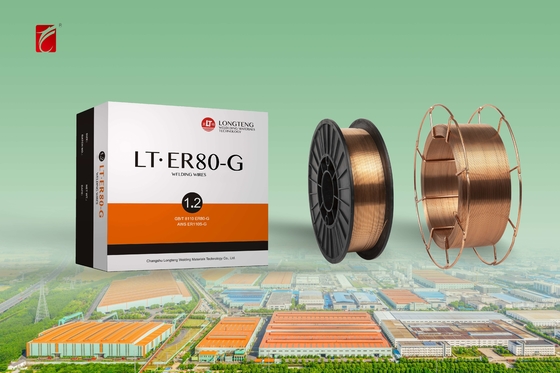

LT·ER80-G 0.8/1.0/1.2/1.6mm High Strength Steel Solid Welding Wire

LT·ER80-G Conform to Standard :GB/T 8110 ER80-G



Features and Applications:
1. ER110S-G is low alloyed and high strength GMAW wire and GTAW rods
2. It is used for joining of the high strength low alloy steels and the fine grained constructional steels with minimum yield strength of 690 N/mm²,

3. especially Hardox and Weldox sheets
4. Boilers, pressure vessels, pipelines, structure steels are the other application areas
5. Weld metal has high impact and toughness at low temperatures
6. Pre-heat can be according to the base material
7. Shielding gases - MAG : (Ar+% 15-25 CO2) / TIG : (Ar)


Chemical Composition(%)


Chemical Composition C Mn Si S P Cr Ni Mo Cu
Guarantee Value ≤0.11 1.40~ 0.40~ ≤0.025 ≤0.025 0.25~ 1.20~ 0.20~ ≤0.50
1.85 1 0.6 2.4 0.6



Mechanical Properties of Deposited Metal(Ar+20%CO2)
Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%) KV2(J)
Guarantee Value ≥790 ≥690 ≥17 ≥27
General Result 840 730 24.5 85,93,75


1. Shield gas: Must ensure not to operate with impurity shield Gas

2. Operation flow rate of shield gas: 20-25L/min.

3. Electrode extension: 15-25mm
