12mm High Yield Strength Deformed Bars Reinforcing

Product Details:
Place of Origin: CHINA
Brand Name: LT
Certification: JISG3137,KSD3505,MS1138,SNI7701
Model Number: Dia7.1mm Dia9.0mm Dia10.7mm Dia12.6mm
Payment & Shipping Terms:
Minimum Order Quantity: 20mt
Packaging Details: SEAWORTHY OF PACKING
Delivery Time: IN 7 DAYS AFTER ORDER
Supply Ability: 60,000MT/MONTH

Detail Information

Grade: 30MnSi Surface: Spiral Groove
Tensile Strength: ≥1420Mpa Yield Strength: ≥1280Mpa
Relaxation: ≤2.0% Elongation: ≥7.0%
Nominal Area: 128mm2 Application: PHC PILE
High Light:

12mm High Yield Strength Deformed Bars

,

High Yield Strength Deformed Bars Reinforcing

,

reinforcing steel bar for concrete rebar reinforcement

Product Description

12.6MM PRESTRESSED CONCRETE STEEL BAR



1, Technical parameters of PC BAR



Nominal diameter 7.1mm 9.0mm 10.7mm 12.6mm
Production standard MS1138:PART 3,JIS G 3137:2020,GB/T 5223.3-2005,SNI 7701:2016
Tensile strength ≥ 1420Mpa
Yield strength ≥ 1280Mpa
Elongation ≥ 7.0%
Relaxation ≤ 2.0%
Straightness ≤ 2mm/m
Material 30MnSi
Weight per coil 1ton-2ton





2, Chemical composition (%) of PC BAR –Material 30MnSi

C Si Mn P(Max) S(Max) Cu(Max)
0.28-0.33 0.60-0.90 0.90-1.30 0.03 0.035 0.3





3, Reference info

Production standard

JIS G 3137 SBPDL 1275/1420

KSD3505

MS1138:PART 3

SNI 7701:2016

Packing Tied with at least 8 steel strips per coil, wrapped with PP woven or stretch film
Coil weight Approx. 0.9MT and 1.3MT
Diameter of Coil Inside Dia.:1.99m Outside Dia.:2.3m Height:18cm
Application Pre-stressed concrete pile /Spun piles /Poles



4, Production lines: 68 lines, the output reaches about 60,000mt per monthly, the biggest PC Bar production base in China and Asia.

12mm High Yield Strength Deformed Bars Reinforcing 0

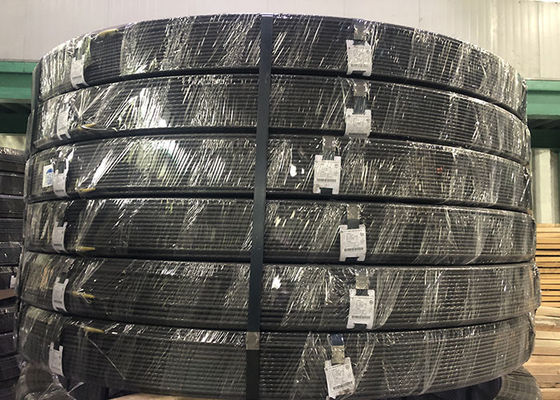

5,Product & Package:

12mm High Yield Strength Deformed Bars Reinforcing 1

12mm High Yield Strength Deformed Bars Reinforcing 2

6, Container loading:

12mm High Yield Strength Deformed Bars Reinforcing 3
