Pretensioned Spun High Strength Concrete Pile End Plate 300mm
Pretensioned Spun High Strength Concrete Pile End Plate 300mm Pretensioned Spun High Strength Concrete Pile End Plate 300mm Pretensioned Spun High Strength Concrete Pile End Plate 300mm Pretensioned Spun High Strength Concrete Pile End Plate 300mm
Contact Now

Pretensioned Spun High Strength Concrete Pile End Plate 300mm

Minimum Order Quantity : 25MT Packaging Details : SEAWORTHY OF PACKING
Delivery Time : 30 DAYS Payment Terms : L/C, D/A, D/P, T/T
Supply Ability : 4,000MT/MONTH
Place of Origin: CHINA Brand Name: LONGTENG
Model Number: D400X95X20-7-10.7-D600X130X20-16-10.7

Detail Information
Material: Q235B Connection: Welding
Standard: GB Standard Or Japanese Standard Size: D300-1200MM
Application: Prestressed Conrete Pile Thickness: 12mm-22mm
High Light:

Pretensioned Spun Concrete Pile End Plate 300mm

,

Spun High Strength Concrete Pile End Plate 300mm

,

precast prestressed spun concrete pile end joint

Product Description

D600X110X20-14-10.7 , Q235B, FOR VIETNAM MARKET, END PLATE FOR CONCRETE PILE



Concrete pile end plate is a fixed connecting part for steel cage of concrete pile, it bears and transfers all loads of tensioning. And end plate is also the important part to connecting two concrete piles together, so the material of the end plate should be better weldability and mechanical strength.



Pretensioned Spun High Strength Concrete Pile End Plate 300mm 0



Material :Q235B



Sizes:

ITEM Specification(mm)
1 300*70*16-6-7.1
2 300*70*18-6-9.0
3 300*70*18-8-9.0
4 300*70*20-8-10.7
5 400*95*16-10-7.1
6 400*95*18-10-9.0
7 400*95*18-7-9.0
8 400*95*20-10-10.7
9 400*95*20-13-10.7
10 400*95*20-7-10.7
11 500*100*18-11-9.0
12 500*100*18-11-10.7
13 500*100*20-11-10.7
14 500*100*20-11-9.0
15 500*100*24-11-12.6
16 500*100*24-13-12.6
17 500*110*18-11-9.0
18 500*110*20-11-10.7
19 500*110*24-11-12.6
20 500*110*24-13-12.6
21 500*125*18-12-9.0
22 500*125*20-12-10.7
23 500*125*24-12-12.6
24 500*125*24-15-12.6
25 600*110*18-14-9.0
26 600*110*20-14-10.7
27 600*110*24-14-12.6
28 600*110*24-17-12.6
29 600*130*18-16-9.0
30 600*130*20-16-10.7
31 600*130*24-16-12.6
32 600*130*24-20-12.6



Could produce different speficiations accoridng to customer requirements.

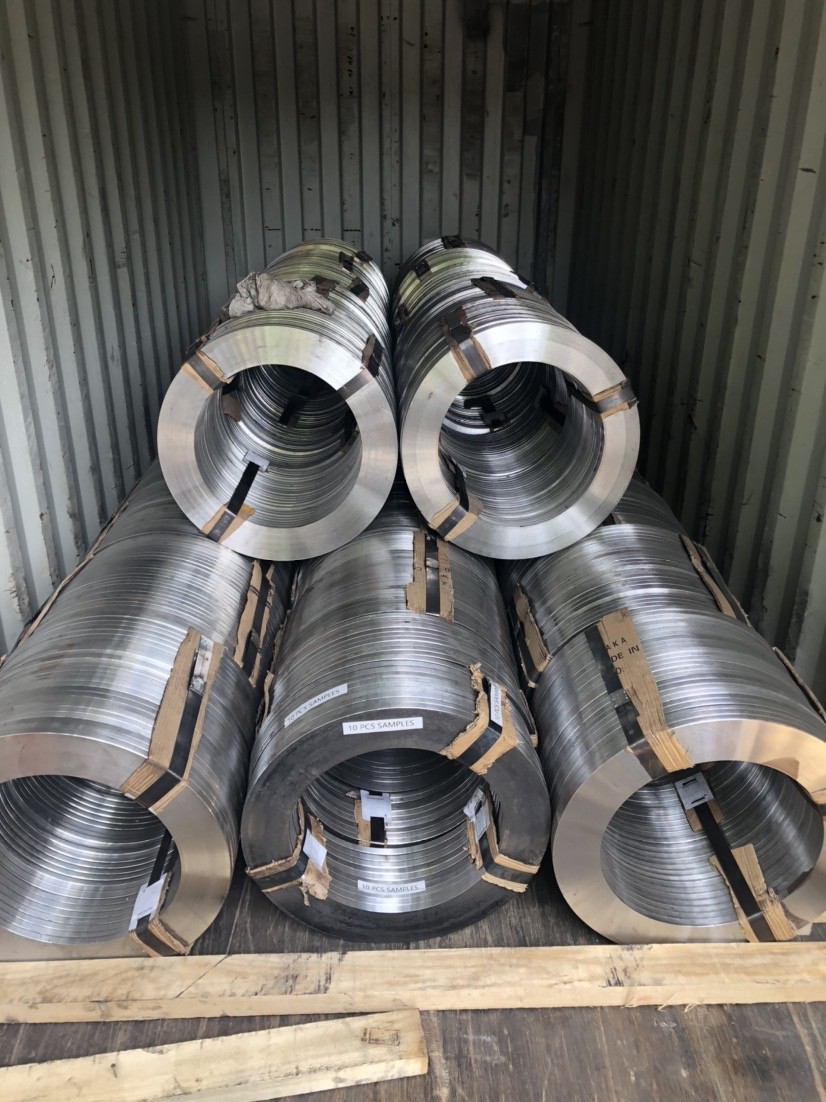

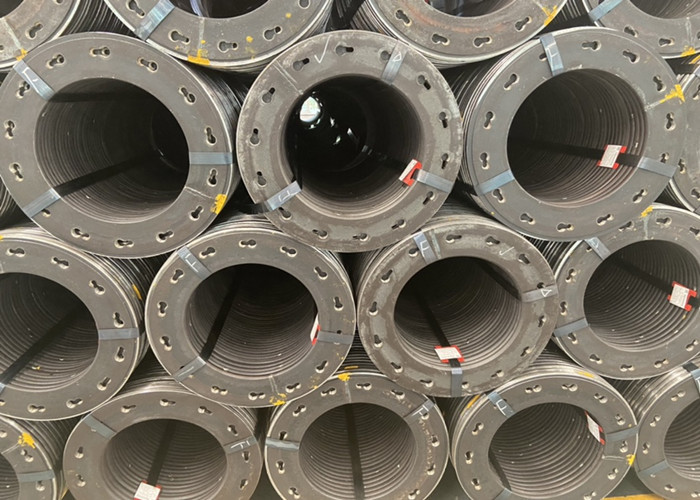

Raw material made by our own facotory:

Pretensioned Spun High Strength Concrete Pile End Plate 300mm 1



Pretensioned Spun High Strength Concrete Pile End Plate 300mm 2

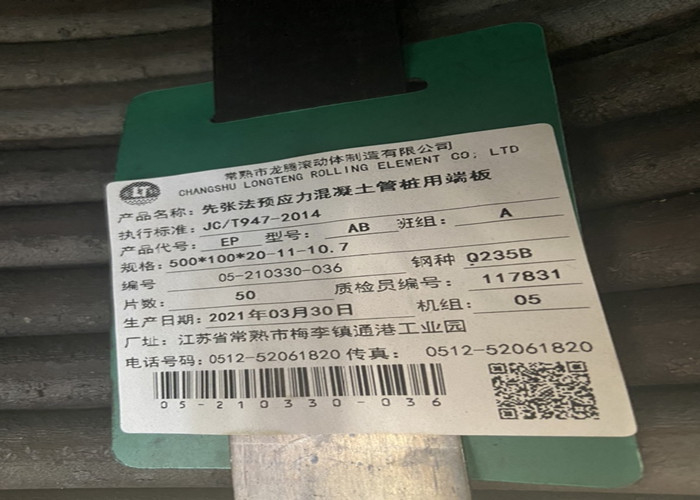

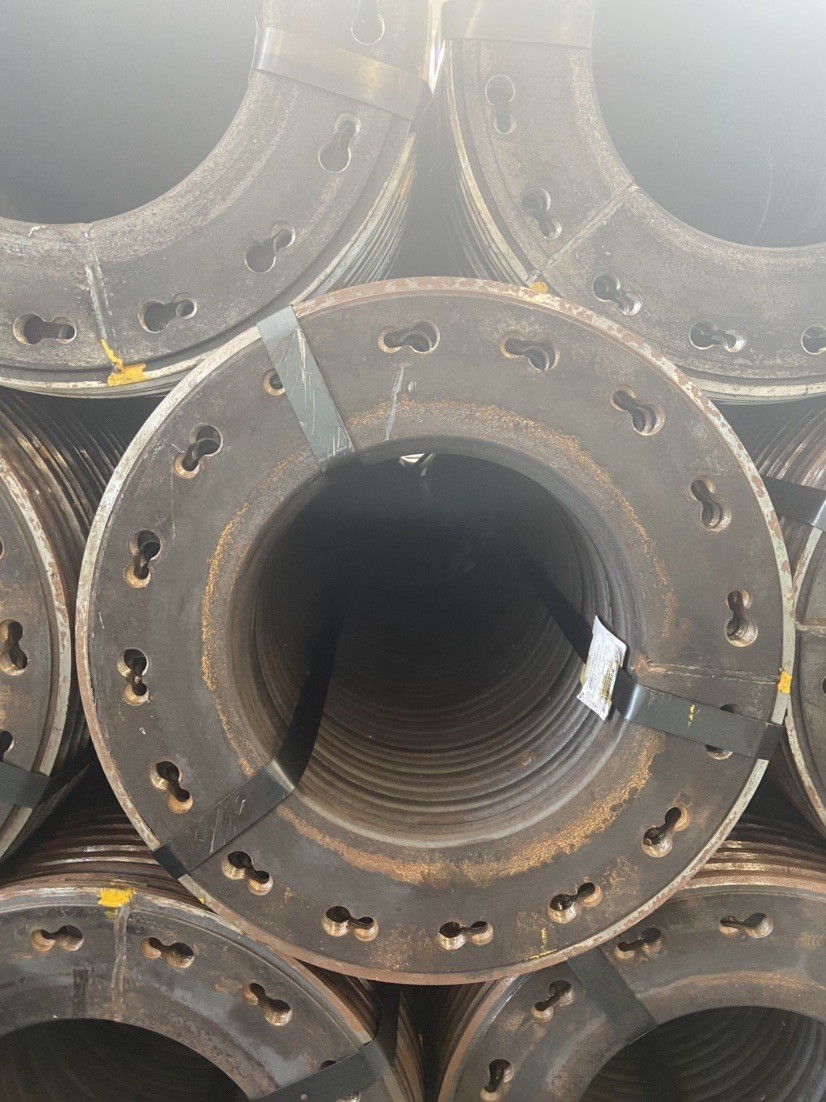

Finished product:

Pretensioned Spun High Strength Concrete Pile End Plate 300mm 3

Pretensioned Spun High Strength Concrete Pile End Plate 300mm 4

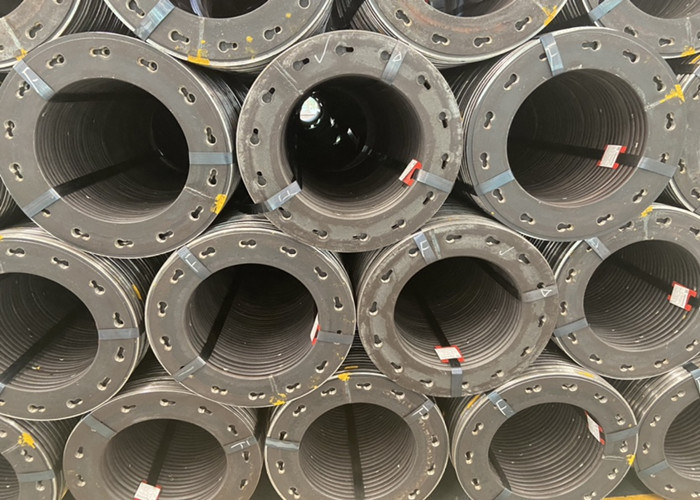

Application on Concrete Pile:

Pretensioned Spun High Strength Concrete Pile End Plate 300mm 5
