10holes 400mm Steel Joint Plate Prestressed Concrete Pile End Plate Shoes
Contact Person : Kevin Yin
WhatsApp : +8613812837333
| Minimum Order Quantity : | 25MT | Packaging Details : | SEAWORTHY OF PACKING |
|---|---|---|---|
| Delivery Time : | 30 DAYS | Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 4,000MT/MONTH |
| Place of Origin: | CHINA | Brand Name: | LONGTENG |
|---|---|---|---|
| Model Number: | D300X180X12-D600X400X15 |
|
Detail Information |
|||
| Material: | Q235B | Surface: | FLAT |
|---|---|---|---|
| Standard: | GB , JIS , BS | Package: | Seaworthy Packing |
| Shipment: | By 20'gp Container | Application: | Prestressed Conrete Pile |
| High Light: | Carbon Steel Joint Plate Flange,Prestressed Concrete Spun Pile Flange,Carbon steel end plate for spun concrete pile |
||
Product Description
JAPAN D300-D600, Q235, Steel Joint plate, Flange for Prestressed Concrete Spun Pile
Concrete pile end plate is a fixed connecting part for steel cage of concrete pile, it bears and transfers all loads of tensioning. And end plate is also the important part to connecting two concrete piles together, so the material of the end plate should be better weldability and mechanical strength. Therefore, we choose the material of end plate is Q235B with low carbon content.
Specifications:
| No. | Model | DP | Quality of holes | Main Wire |
| 1 | 400×60×14 | 340 | 7 | ∅7.1 |
| 2 | 400×95×16 | 308 | 10 | ∅7.1 |
| 3 | 400×95×18 | 308 | 10 | ∅9.0 |
| 4 | 400×95×20 | 308 | 10 | ∅10.7 |
| 5 | 500×100×18 | 406 | 11 | ∅9.0 |
| 6 | 500×100×20 | 406 | 11 | ∅10.7 |
| 7 | 500×100×24 | 406 | 11 | ∅12.6 |
| 8 | 500×125×18 | 406 | 12 | ∅9.0 |
| 9 | 500×125×20 | 406 | 12 | ∅10.7 |
| 10 | 500×125×24 | 406 | 12 | ∅10.7 |
| 11 | 600×130×20 | 506 | 16 | ∅10.7 |
Could produce different speficiations accoridng to customer requirements.

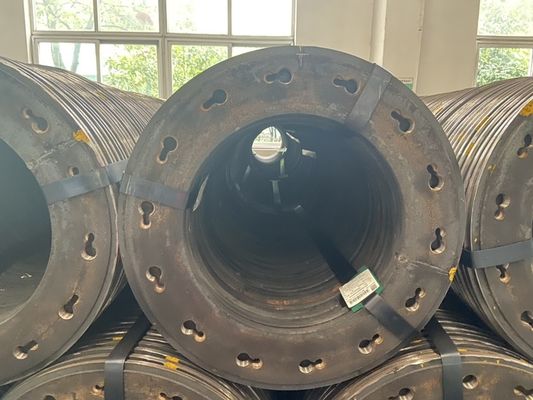

Finished product:
Applicatoin as joint end plate on prestressed concrete plie:
