Garde A Ah36 En 10067 Bulb Flat Steel Suppliers
Contact Person : Kevin Yin
WhatsApp : +8613812837333
| Minimum Order Quantity : | 25MT | Packaging Details : | Seaworthy way of packing |
|---|---|---|---|
| Delivery Time : | 30 DAYS | Payment Terms : | L/C, T/T, D/A, D/P |
| Supply Ability : | 40000MT/MONTH |
| Place of Origin: | CHINA | Brand Name: | LONGTENG |
|---|---|---|---|
| Model Number: | DBC 13*152 |
|
Detail Information |
|||
| Material: | 25MnB,25CrMnB | Product Name: | Hot Rolled Blade Edge |
|---|---|---|---|
| Specifications: | DBC 13*152 | Application: | FOR CONSTRUCTION |
| Customized: | Accept | ||
| High Light: | Hot Rolled Blade Edge,DBC 13*152 Blade Edge,25CrMnB Blade Edge |
||
Product Description

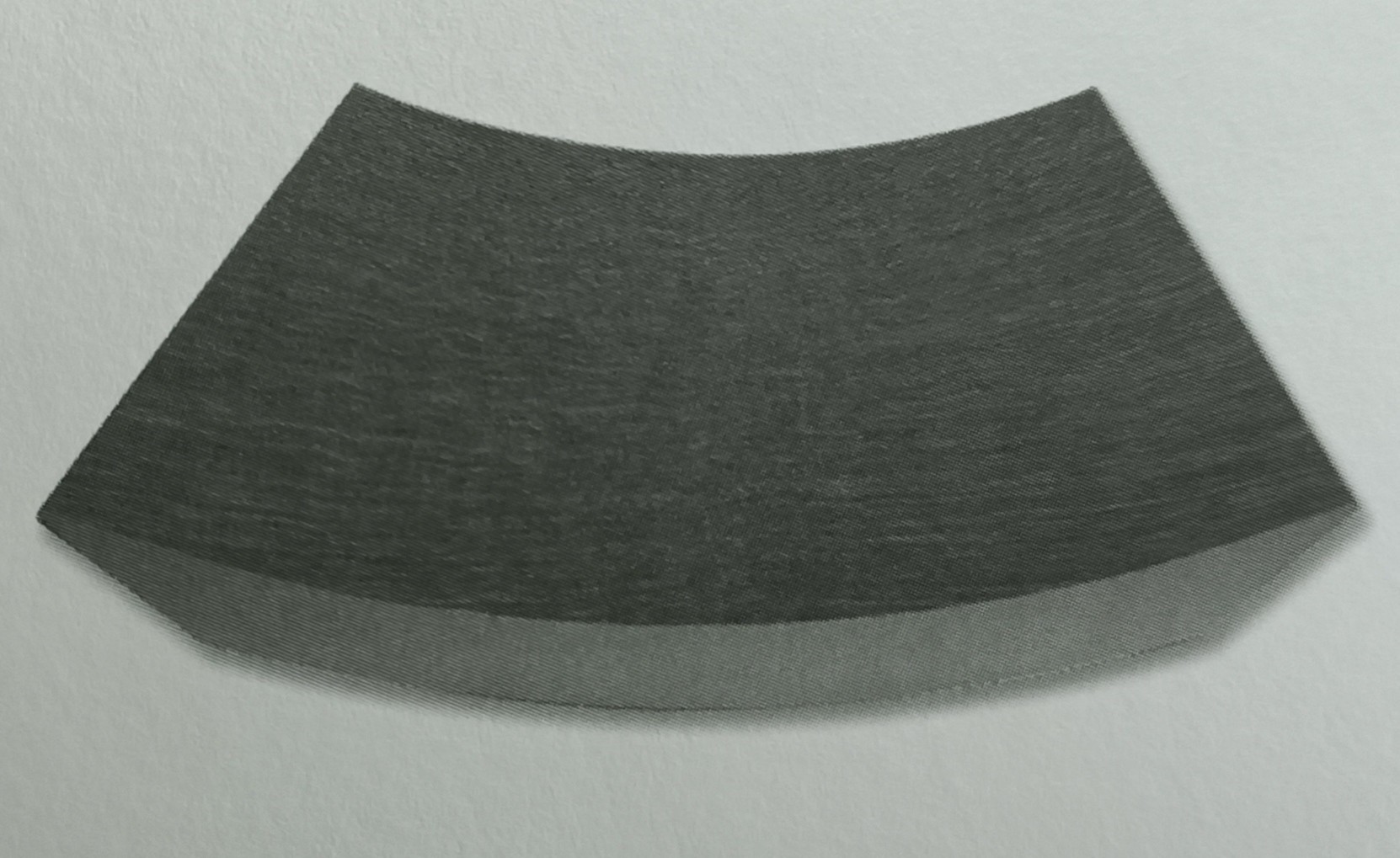

Hot-Rolled Blade Edge DBC 13*152
Hot Rolled Blade Edge
Grade: 25MnB and 25CrMnB
Legnth: customized
Shpe:
Specifications:
| Specification | Specifications and tolerance standards(mm) | Sectional Area(mm²) | Mass/Unit Length(kg/m) | ||||
| B | T | b | t | R1 | |||
| DBC 13×152 | 152.4±1.6 | 13±0.4 | 30.2±1.6 | 2.5±0.4 | 273 | 1719.076 | 13.495 |
| DBC 16×152 | 152.4±1.6 | 16±0.4 | 31.8±1.6 | 3.1±0.4 | 273 | 2124.18 | 16.675 |
| DBC 19×152 | 152.4±1.6 | 19±0.4 | 31.8±1.6 | 6.3±0.4 | 273 | 2587.629 | 20.313 |
| DBC 13×203 | 203.2±1.6 | 13±0.4 | 30.2±1.6 | 2.5±0.4 | 273 | 2427.06 | 19.052 |
| DBC 16×203 | 203.2±1.6 | 16±0.4 | 31.8±1.6 | 3.1±0.4 | 273 | 3005.591 | 23.594 |
| DBC 19×203 | 203.2±1.6 | 19±0.4 | 32.3±1.6 | 5.2±0.4 | 273 | 3540.074 | 27.790 |
| DBC 25×203 | 203.2±1.6 | 25.4±0.4 | 32.3±1.6 | 11.5±0.4 | 273 | 4813.205 | 37.784 |
| the arc radius not marked with accuracy requirements in the tale is used for hole pattern design,not for delivery condition. | |||||||
Notes:Please inquire us for special requirements of thinckness.
