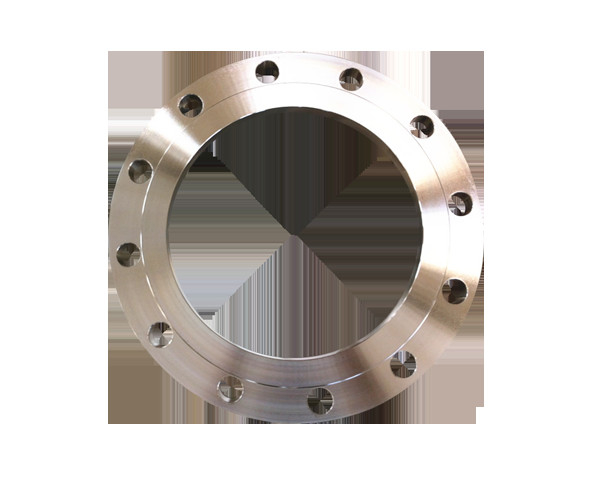

ANSI B16.5 Forged Plate Flange PN2.5 / 6 / 10 / 16 / 25 / 40 Heat Treatment
Contact Person : Kevin Yin
WhatsApp : +8613812837333
| Minimum Order Quantity : | one pallet | Price : | USD 1 |
|---|---|---|---|
| Packaging Details : | Fumigate-free wooden box | Delivery Time : | 20-30 WORKING DAYS |
| Payment Terms : | L/C, T/T | Supply Ability : | 100,000 TONS PER YEAR |
| Place of Origin: | China | Brand Name: | Longteng |
|---|---|---|---|
| Certification: | ISO9001:2015/C | Model Number: | Plate Flange |
|
Detail Information |
|||
| Material: | A105/C22.8/Q235/Q355B / P250GH | Standard: | HG/T 20592-2009, ANSI B16.5 |
|---|---|---|---|
| Production Process: | Forging, Heat Treatment | Tolerance: | Min. 0.01mm |
| Hardness: | HRC, HB, HV | Roughness: | Min. Ra0.4 |
| Marking: | Laser | Customization: | Customize |
Product Description
Description:
Plate flanges are most commonly used for joining pipes together, but they can also be used for connecting different parts of a system or even for sealing off sections where necessary. For example, plate flanges may be used to join two metal pipes together or to connect two sections of pipe with each other. Furthermore, plate flanges can also be used to seal off an area between two pieces of metal that need to remain separate from one another. Additionally, they can be used to join two plastic pipes together or even two sections of an air conditioning unit or heater.
(MM)
| Nominal Size(DN) | Outside diameter of steel pipe(A1) | Connection Size | Flange thickness(C) | Flange diameter(B1) | ||||||
| A | B | Outside diameter of flange(D) | Spiral hole center diameter(K) | Bolt hole diameter(L) | Number of bolt hole(n) | Bolt(Th) | A | B | ||
| 10 | 17.2 | 14 | 75 | 50 | 11 | 4 | M10 | 12 | 18 | 15 |
| 15 | 21.3 | 18 | 80 | 55 | 11 | 4 | M10 | 12 | 22.5 | 19 |
| 20 | 26.9 | 25 | 90 | 65 | 11 | 4 | M10 | 14 | 27.5 | 26 |
| 25 | 33.7 | 32 | 100 | 75 | 11 | 4 | M10 | 14 | 34.5 | 33 |
| 32 | 42.4 | 38 | 120 | 90 | 14 | 4 | M12 | 16 | 43.5 | 39 |
| 40 | 48.3 | 45 | 130 | 100 | 14 | 4 | M12 | 16 | 49.5 | 46 |
| 50 | 60.3 | 57 | 140 | 110 | 14 | 4 | M12 | 16 | 61.5 | 59 |
| 65 | 76.1 | 76 | 160 | 130 | 14 | 4 | M12 | 16 | 77.5 | 78 |
| 80 | 88.9 | 89 | 190 | 150 | 18 | 4 | M16 | 18 | 90.5 | 91 |
| 100 | 114.3 | 108 | 210 | 170 | 18 | 4 | M16 | 18 | 116 | 110 |
| 125 | 139.7 | 133 | 240 | 200 | 18 | 8 | M16 | 20 | 143.5 | 135 |
| 150 | 168.3 | 159 | 265 | 225 | 18 | 8 | M16 | 20 | 170.5 | 161 |
| 200 | 219.1 | 219 | 320 | 280 | 18 | 8 | M16 | 22 | 221.5 | 222 |
| 250 | 273 | 273 | 375 | 335 | 18 | 12 | M16 | 24 | 276.5 | 276 |
| 300 | 323.9 | 325 | 440 | 395 | 22 | 12 | M20 | 24 | 328 | 328 |
| 350 | 355.6 | 377 | 490 | 445 | 22 | 12 | M20 | 26 | 360 | 381 |
| 400 | 406.4 | 426 | 540 | 495 | 22 | 16 | M20 | 28 | 411 | 430 |
| 450 | 457 | 480 | 595 | 550 | 22 | 16 | M20 | 30 | 462 | 485 |
| 500 | 508 | 530 | 645 | 600 | 22 | 20 | M20 | 30 | 513.5 | 535 |
| 600 | 610 | 630 | 755 | 705 | 26 | 20 | M24 | 32 | 616.5 | 636 |
| 700 | 711 | 720 | 860 | 810 | 26 | 24 | M24 | 36 | 715 | 724 |
| 800 | 813 | 820 | 975 | 920 | 30 | 24 | M27 | 38 | 817 | 824 |
| 900 | 914 | 920 | 1075 | 1020 | 30 | 24 | M27 | 40 | 918 | 924 |
| 1000 | 1016 | 1020 | 1175 | 1120 | 30 | 28 | M27 | 42 | 1020 | 1024 |
Leadtime:
| Quantity(pieces) | 1,000 - 10,000 | >10,000 |
| Lead time (days) | 20-30 | To be negotiated |
