11mm 13mm Prestressed Reinforcing Steel Bar For Concrete Rebar Reinforcement

Minimum Order Quantity : 1 container/20tons Packaging Details : PLASTIC FILM PACKING
Place of Origin: CHINA Brand Name: LT
Certification: KS D3505 Model Number: 7.4/9.2/11/13

Detail Information

PRODUCT NAME: PRESTRESSED CONCRETE STEEL BAR BRAND: LT
SIZE: 7.4/9.2/11/13 APPLICATION: Prestressed Concrete Pile
MATERIAL: STEEL CUSTOMIZED: ACCEPT
High Light:

13mm Prestressed Reinforcing Steel Bar

,

11mm Prestressed Reinforcing Steel Bar

,

concrete reinforcing steel bar 6mm

Product Description

7.4/9.2/11/13MM PRESTRESSED CONCRETE STEEL BAR



Developed as the main reinforcement for PC piles and poles and featuring superb bonding characteristics with concrete,  a narrow-diameter deformed PC steel bar provided with mechanical properties specified by JIS G 3137 realized through deformation drawing, induction quenching and tempering of raw material with outstanding chemical composition for spot welding.



1, Technical parameters of PC BAR

Size(mm) Surface Shape Type

Nominal steel area

(S/mm2)

Tensile Strength

(Mpa)

Yield Stress

(Mpa)

Relaxation

rate

(%)

Elongation

(%)

7.1/7.4 Spiral Groove 39-41.7 ≥1420 ≥1280 ≤2.0 ≥7.0
9.0/9.2 62.4-66.5
10.7/11 87.5-93.6
12.6/13 121.5-129.9



2, Chemical composition (%) of PC BAR –Material 30MnSi

C Si Mn P(Max) S(Max) Cu(Max)
0.28-0.33 0.60-0.90 0.90-1.30 0.03 0.035 0.3



3, Reference info

Production standard  KSD3505
Packing Tied with at least 8 steel strips per coil, wrapped with waterproof film.
Coil weight 1-ton or 2-ton coil shapes are available for delivery.
Diameter of Coil Inside Dia.:1.99m Outside Dia.:2.3m Height:18cm
Application Pre-stressed concrete pile /Spun piles /Poles



Product detail:

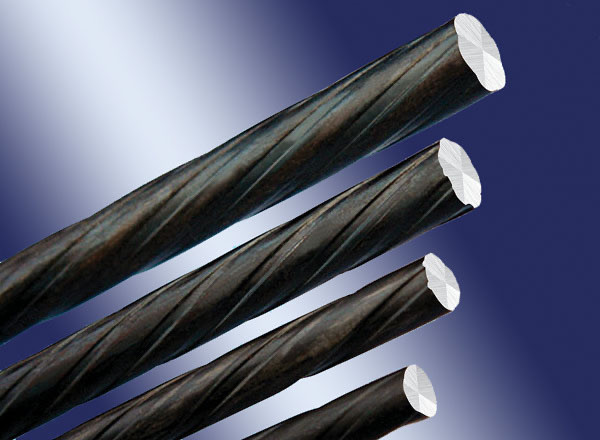

11mm 13mm Prestressed Reinforcing Steel Bar For Concrete Rebar Reinforcement 0

11mm 13mm Prestressed Reinforcing Steel Bar For Concrete Rebar Reinforcement 1

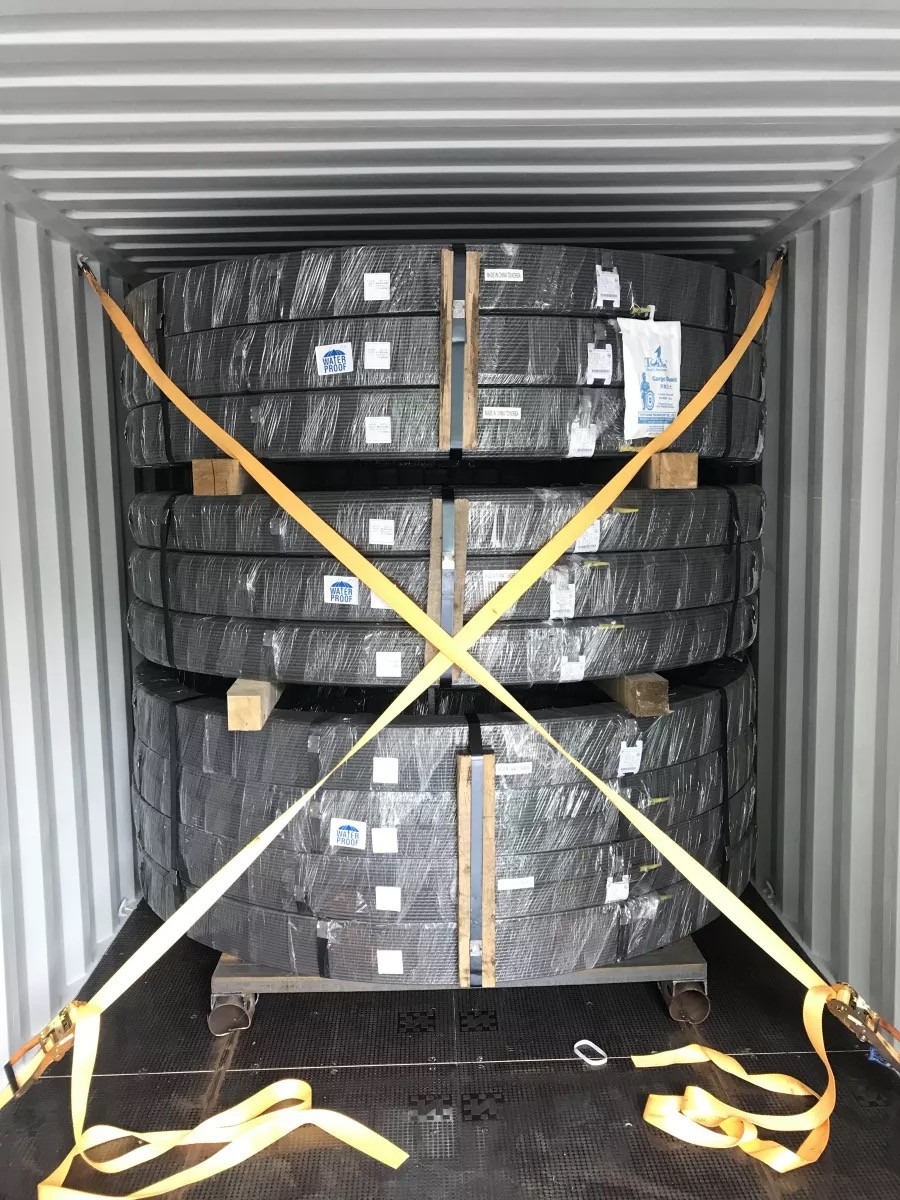

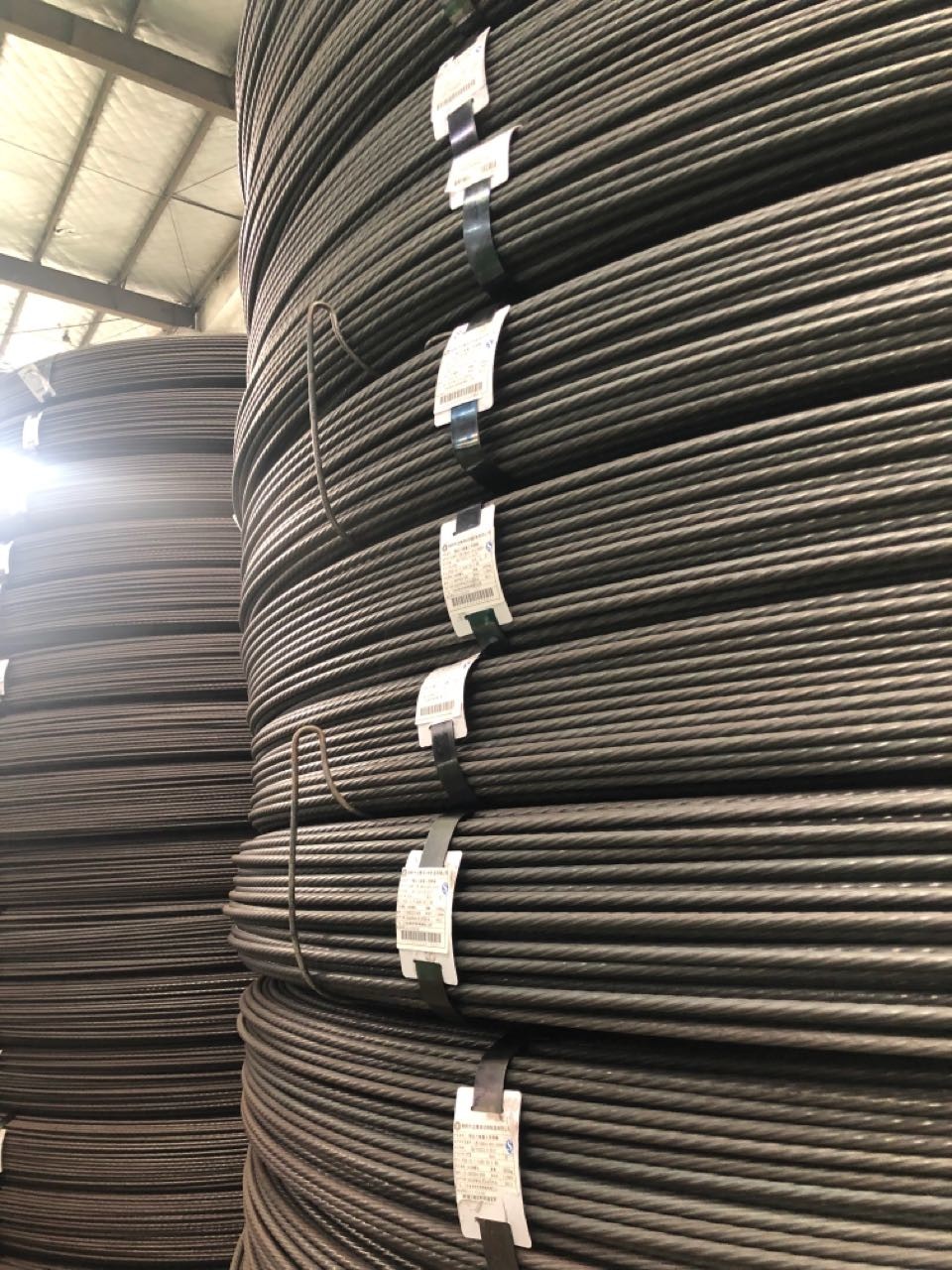

Package and Container loading:

11mm 13mm Prestressed Reinforcing Steel Bar For Concrete Rebar Reinforcement 2

11mm 13mm Prestressed Reinforcing Steel Bar For Concrete Rebar Reinforcement 3
