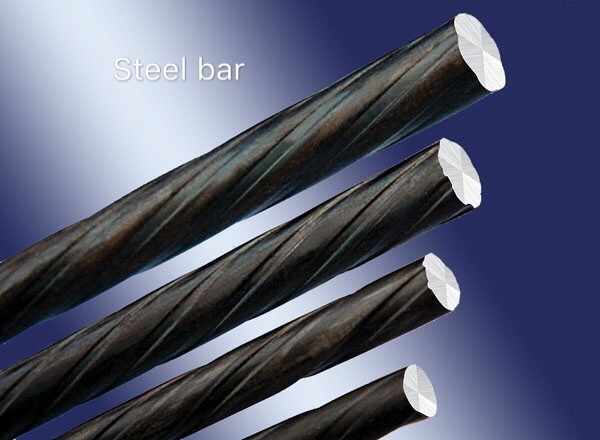

12.6mm Twisted Prestressed Concrete Steel Bar Iron Rod For Concrete

Minimum Order Quantity : 20mt Packaging Details : SEAWORTHY PACKING
Delivery Time : IN 7 DAYS AFTER ORDER Payment Terms : L/C, D/A, D/P, T/T
Supply Ability : 60,000MT/MONTH
Place of Origin: CHANGSHU,CHINA Brand Name: LT
Certification: JIS G 3137:2020;KS D 3505-2019;GB/T 5223.3-2005;MS1138:PART 3;SNI 7701:2016 Model Number: 7.1mm,9.0mm,10.7mm,12.6mm

Detail Information

Material: 30MnSi Surface: Spiral Groove
Tensile Strength: ≥1420Mpa Yield Strength: ≥1280Mpa
Relaxation: ≤2.0% Elongation: ≥7.0%
Nominal Area: 125mm2 Application: PHC PILE
High Light:

12.6mm Prestressed Concrete Steel Bar Iron

,

twistedPrestressed Concrete steel bar

,

12.6mm iron bars for concrete

Product Description

FOR VIETNAM 12.6MM PC STEEL BAR FOR CONCRETE PILE



Changshu Longteng Rolling Element Co.,Ltd. belongs to Longteng Group, who is a Comprehensive Steel Mill with downstream processing which includes steel products fall into different industries like Shipbuilding, Mining, Construction and Wind power & Solar power.



PC Steel Bar is one of our major products involves in construction industry, it is mainly used on PHC( High strength prestressed concrete pipe pile), Concrete Spun Pile, telegraph Pole, telecome Pole etc..



Besides domestic market, we also export to Korea,Vietnam, Malaysia,Indonesia,ect foreign countries.



We are the FIRST and ONLY offcially approved manufacturer to produce PC bar accordings to Japanese Industrial Standards.



12.6mm Twisted Prestressed Concrete Steel Bar Iron Rod For Concrete 0

12.6mm Twisted Prestressed Concrete Steel Bar Iron Rod For Concrete 1





Our Advantages :

1) We complete fully production process from Iron making-Steel making-Steel rolling-High Speed Wire Rod-PC Bar Processing-Finished Products.

2) Well control quality of Raw material , as we use the raw material wire rod from own steel factory.

3) 68 prodcution lines with fastest delivery time.

4) Competitive price and good reputation in the Industry.





PC steel bar information:



1, Technical parameters of PC BAR



Nominal diameter 7.1mm 9.0mm 10.7mm 12.6mm
Production standard MS1138:PART 3
Tensile strength ≥ 1420Mpa
Yield strength ≥ 1280Mpa
Elongation ≥ 7.0%
Relaxation ≤ 2.0%
Straightness ≤ 2mm/m
Material 30MnSi
Weight per coil 1ton-2ton



2, Chemical composition (%) of PC BAR –Material 30MnSi



C Si Mn P(Max) S(Max) Cu(Max)
0.28-0.33 0.60-0.90 0.90-1.30 0.03 0.035 0.3



3, Other info about PC bar:



Production standard

JIS G 3137 SBPDL 1275/1420

KSD3505

MS1138:PART 3

SNI 7701:2016

Packing Tied with at least 8 steel strips per coil, wrapped with PP woven or stretch film
Coil weight Approx. 0.9MT and 1.3MT
Diameter of Coil Inside Dia.:1.99m Outside Dia.:2.3m Height:18cm
Application Pre-stressed concrete pile /Spun piles /Poles

4, Product lines, product package and shipment:

12.6mm Twisted Prestressed Concrete Steel Bar Iron Rod For Concrete 2

12.6mm Twisted Prestressed Concrete Steel Bar Iron Rod For Concrete 3



12.6mm Twisted Prestressed Concrete Steel Bar Iron Rod For Concrete 4

12.6mm Twisted Prestressed Concrete Steel Bar Iron Rod For Concrete 5
