1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
Contact Person : Kevin Yin
WhatsApp : +8613812837333
| Minimum Order Quantity : | 1 container/20tons | Packaging Details : | SEAWORTHY PACKING |
|---|---|---|---|
| Delivery Time : | IN 7 DAYS AFTER ORDER | Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 60,000MT/MONTH |
| Place of Origin: | CHINA,CHANGSHU | Brand Name: | LT |
|---|---|---|---|
| Certification: | MS1138 PART3 | Model Number: | 12.6mm |
|
Detail Information |
|||
| Material: | 30MnSi | Surface: | Spiral-fluted |
|---|---|---|---|
| Tensile Strength: | ≥1420Mpa | Yield Strength: | ≥1280Mpa |
| Relaxation: | ≤2.0% | Elongation: | ≥7.0% |
| Nominal Area: | 125mm2 | Application: | PHC PILE |
| High Light: | 12.6MM Pc Steel Bar,Pc Steel Bar For Prestressed Concrete Steel Pile,high strength steel in prestressed concrete |
||
Product Description

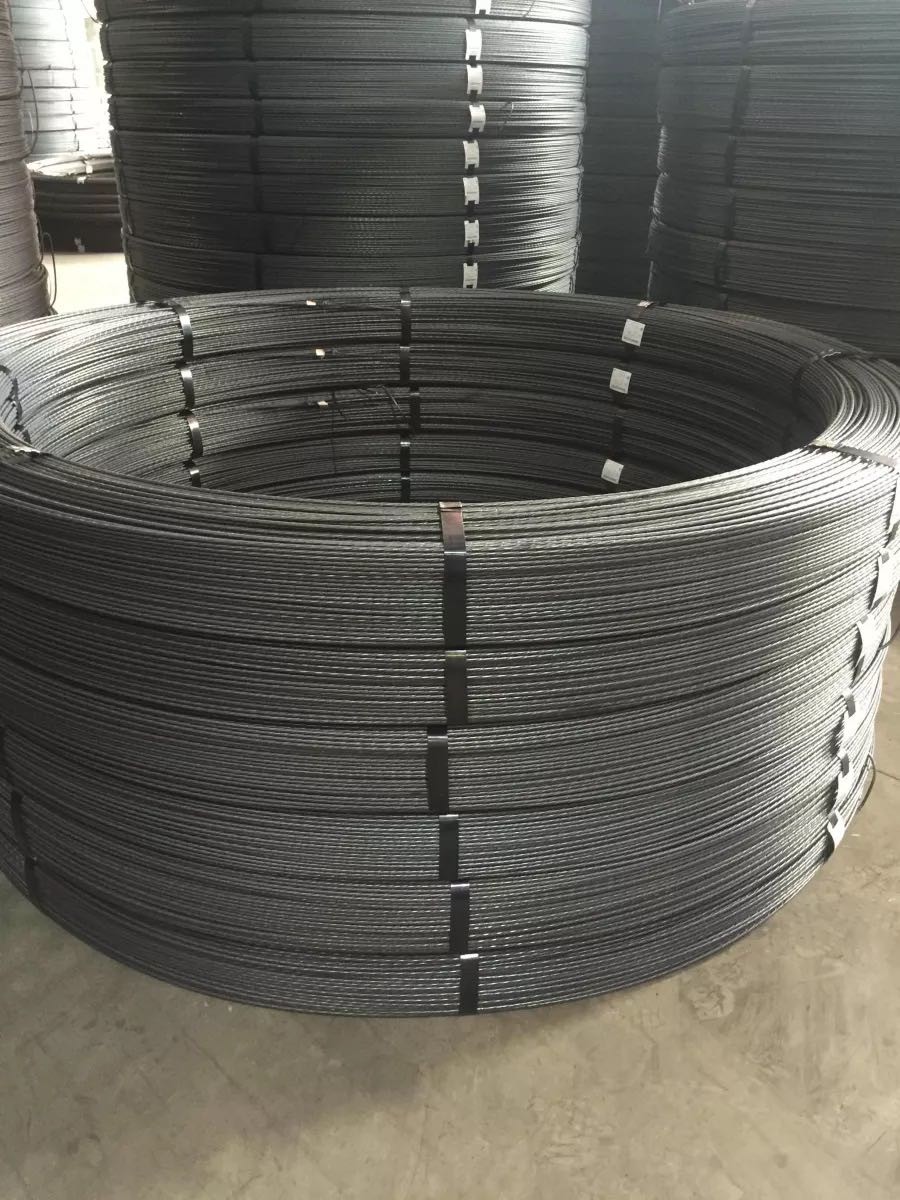

PC STEEL BAR 12.6MM
PC steel bar information:
1, Technical parameters of PC BAR
| Size(mm) | Surface Shape Type |
Nominal steel area (S/mm2) |
Tensile Strength (Mpa) |
Yield Stress (Mpa) |
Relaxation rate (%) |
Elongation (%) |
| 7.1 | Spiral Groove | 39-41.7 | ≥1420 | ≥1280 | ≤2.0 | ≥7.0 |
| 9.0 | 62.4-66.5 | |||||
| 10.7 | 87.5-93.6 | |||||
| 12.6 | 121.5-129.9 |
2, Chemical composition (%) of PC BAR –Material 30MnSi
| C | Si | Mn | P(Max) | S(Max) | Cu(Max) |
| 0.28-0.33 | 0.60-0.90 | 0.90-1.30 | 0.03 | 0.035 | 0.3 |
3, Reference info
| Production standard | MS1138:PART 3 |
| Packing | Tied with at least 8 steel strips per coil, wrapped with PP woven or stretch film |
| Coil weight | Approx. 0.9MT and 1.3MT |
| Diameter of Coil | Inside Dia.:1.99m Outside Dia.:2.3m Height:18cm |
| Application | Pre-stressed concrete pile /Spun piles /Poles |
4, Product lines, product package and shipment:
