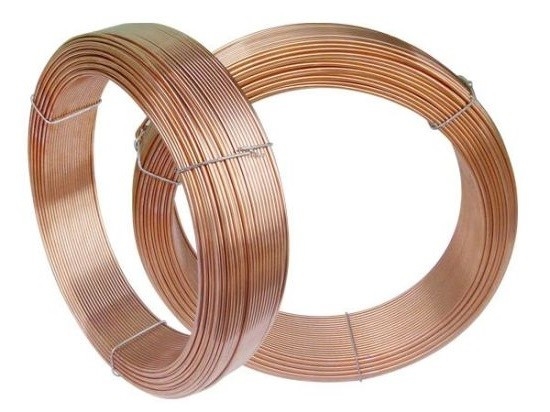

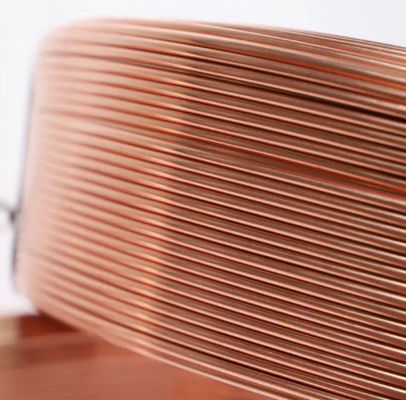

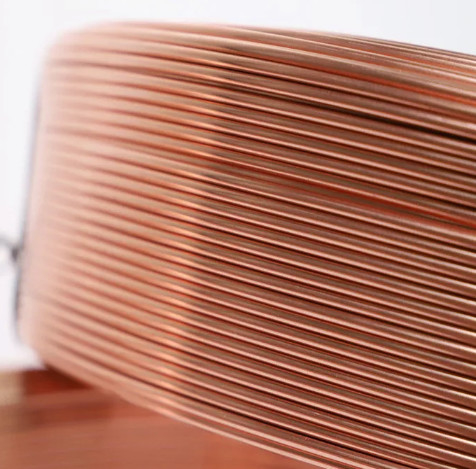

H08MnA AWS Em12 Submerged Arc Welding Wire 4mm 5.0mm 250kg

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001 Model Number: LT·H08MnA

Detail Information

Product Name: Submerged Arc Welding Wire LT·H08MnA Model: LT·H08MnA
Brand: LONGTENG Diameter: 2.5/3.2/4.0/5.0mm
Weight: 25/50/250kg Surface: Cooper Plating
OEM: Accept
High Light:

AWS Em12 Submerged Arc Welding Wire 4mm

,

H08MnA Submerged Arc Welding Wire 250kg

,

aws a5.17 em12

Product Description

LT·H08MnA 2.5/3.2/4.0/5.0mm Submerged Arc Welding Wire

LT·H08MnA Conform to Standard :GB/T 5293 H08MnA

AWS Em12

ISO 14171-B-SU22

Specification:It is a kind of medium manganese-low silicon type welding wire,matches with medium-manganese and medium-silicon welding flux,Insensitive to rust on the base metal, It has excellent bead molding and slag detach ability.The wire can be applied single or dual feeding with AC/DC.

Purpose:Using with sintered flux LT•SJ101 , it can be applied both for high-speed welding steel plate of tensile strength 420N/mm2 and filling welding



Chemical Composition(%)

Chemical Composition C Mn Si S P Cr Ni Cu
Guarantee Value ≤0.10

0.80~

1.10

≤0.07 ≤0.030 ≤0.030 ≤0.20 ≤0.30 ≤0.35
General Result 0.066 0.96 0.038 0.007 0.010 0.027 0.011 0.110


Mechanical Properties of Deposited Metal

Test item



Flux

Rm(MPa) ReL/Rp0.2(MPa) A(%)

KV2(J)

-20℃

LT•SJ101 415~550 ≥330 ≥22 ≥27


Size of Welding Wires

Size(mm) Φ2.5 Φ3.2 Φ4.0 Φ5.0



Notes:
1. Shielding gas: Adopt pure Argon gas. Recommendation flow rate: 9-14L/min (AMP 100-200A), 14-18L/min (AMP 200-300A).
2. Tungsten extension: 3-5mm, Arc length: 1-3mm.
3. Wind speed limited: ≤1.0m/s.
Argon gas shielding on back side of welding part will get better welding result.
4. Mechanic property and metal anti-cracking ability of the welded metal relative by energy pass value on the wire.
5. The welding should be operated in clean surface without rust, moist, oil contamination and dust.The above suggestions are for reference purpose. Evaluate and determine the situation of the scene before starting the wielding process.
