AWS EL8 H08A Submerged Arc Welding Wire 3.2mm 4.0mm 5.0mm 50Kg

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001 Model Number: LT·H08A

Detail Information

Product Name: Submerged Arc Welding Wire LT·H08A Model: LT·H08A
Brand: LONGTENG Diameter: 2.5/3.2/4.0/5.0mm
Weight: 25/50/250kg Surface: Cooper Plating
OEM: Accept
High Light:

H08A Submerged Arc Welding Wire

,

AWS EL8 Arc Welding Wire

,

3.2mm Submerged Arc Welding Wire

Product Description

AWS EL8 H08A Submerged Arc Welding Wire 3.2mm 4.0mm 5.0mm 50 Kg



LT·H08A 2.5/3.2/4.0/5.0mm Submerged Arc Welding Wire

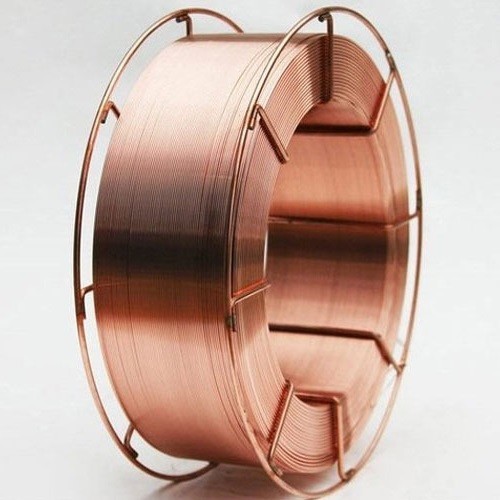

Welding wire H08A is copper-coated SAW wire for mild steel. It could be used to weld workpiece in combination with different fluxes, thus joint mechanical properties are different accordingly. Generally, H08A is used together with fused flux for mild steel that doesn’t require high tensile strength, and together with agglomerated flux for low alloy steel.



LT·H08A Conform to Standard :GB/T 5293 H08A

AWS EL8

ISO 14171-B-SU11



Specification:It is a kind of low manganese-silicon type welding wire, matches with high-manganese,and high-silicon welding flux,Insensitive to rust on the base metal. It has excellent bead molding and slag detach ability and has the largest consumption of submerged arc welding wires in the domestic.The wire can be applied single or dual feeding with AC/DC..



Purpose:Widely used for carbon steel (Q195, Q215), low alloy steel (09Mn2, 16MnCu, 16Mn, 15MnTi) in boiler, shipbuilding, pressure vessel, pipes industry. Suitable welding flux recommended: SJ301, SJ501, HJ431, etc.



Chemical Composition(%)

Chemical Composition C Mn Si S P Cr Ni Cu
Guarantee Value ≤0.10

0.30~

0.60

≤0.03 ≤0.030 ≤0.030 ≤0.20 ≤0.30 ≤0.35
General Result 0.060 0.45 0.012 0.014 0.020 0.017 0.022 0.113


Mechanical Properties of Deposited Metal

Test item



Flux

Rm(MPa) ReL/Rp0.2(MPa) A(%)

KV2(J)

-20℃

LT•SJ301 415~550 ≥330 ≥22 ≥27


Size of Welding Wires

Size(mm) Φ2.5 Φ3.2 Φ4.0 Φ5.0
