Low Carbon Steel Welding Electrodes E6013 2.5mm 1/16

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS Model Number: LT·E6013

Detail Information

Product Name: Carbon Steel Electrodes LT·J421 Model: LT·E6013
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Titanium
Packing: Plastic Box OEM: Accept
High Light:

Low Carbon Steel Welding Electrodes E6013

,

e6013 welding rod 1/16

,

welding rod e6013 2.5mm

Product Description

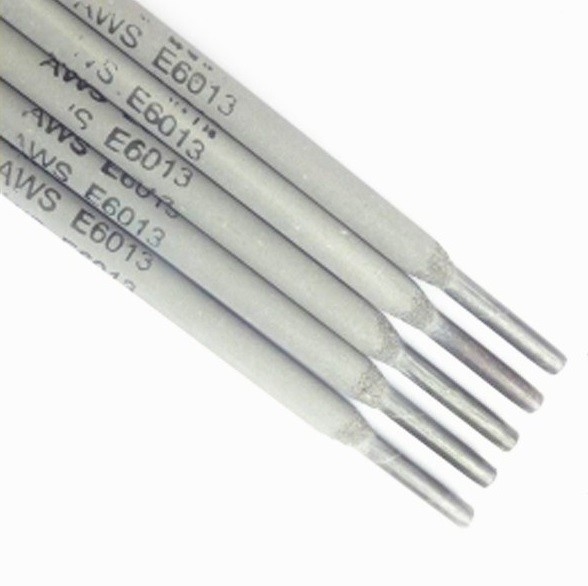

LT·E6013 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes

Conform to Standard



GB/T 5117 E4313

AWS A5.1 E6013

ISO 2560-B-E43 13 A


Purpose:It is suitable for welding structures made of low carbon steel, performs very well in welding thin and small size steel plates and also has very good performance in the situation that requires nice and clean bead appearance.



Specification:J421 is rutile-based carbon steel electrode. It has very good welding usability that enables it to perform all-position welding, operates on AC/DC, removal of slag is easy, has stable arc and also has very good bead appearance. It is easy to operate, which makes re-striking the arc easy.



Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Mo V
Guarantee Value

0.20

1.20

1.00

≤0.035 ≤0.040

0.30

0.20

0.30

0.08

General Result 0.075 0.38 0.21 0.018 0.024 0.020 0.032 0.005 0.010





Mechanical Properties of Deposited Metal

Test Item Rm(MPa) ReL(MPa) A(%) KV2(J)
0℃
Guarantee Value ≥430 ≥330 ≥16 ≥47
General Result 485 380 28.5 86



X-Ray Radio-graphic Test Requirements:Grade II


Reference Current(AC,DC)

Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~70 50~90 90~130 130~210 170~230
