Cs Welding Rod For Low Carbon Steel Welding Electrodes J502
Contact Person : Kevin Yin
WhatsApp : +8613812837333
| Minimum Order Quantity : | one pallet | Price : | USD 1 |
|---|---|---|---|
| Packaging Details : | Neutral box/ LT color box/OEM brand box | Delivery Time : | 15 WORKING DAYS |
| Supply Ability : | 1,200,000 TON PER YEAR |
| Place of Origin: | CHINA | Brand Name: | LONGTENG |
|---|---|---|---|
| Certification: | TUV CE, ABS, DB, ISO9001,CCS | Model Number: | LT·E5003 |
|
Detail Information |
|||
| Product Name: | Carbon Steel Electrodes LT·J422 | Model: | LT·E5003 |
|---|---|---|---|
| Brand: | LONGTENG | Diameter: | 2.0/2.5/3.2/4.0/5.0 |
| Weight: | 5kg | Type Of Coating: | Calcium-Titanium |
| Packing: | Plastic Box | OEM: | Accept |
| High Light: | High Carbon Steel Welding Rod E5003,GB E5003 JISD5003,Low Temp Carbon Steel Welding Rod |
||
Product Description

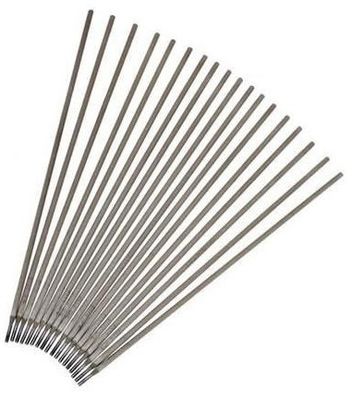

LT·E50032.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes
LT·E5003 Conform to Standard
GB/T 5117 E5003
ISO 2560-B-E 49 03 A
Specification:J502 is calcium-titanium coated carbon steel electrode. It has very good welding usability that enables it to operate on AC/DC, performs all-position welding, has stable arc, removal of slag is easy and has good bead appearance. Its good mechanical properties give it very good low temperature toughness. During the application, its characteristic of easy maneuverability offers easy striking, easy re-striking and good control of welding speed, which enables the welders to have desired weld path and penetration of the arc.
Purpose:Used for welding all kinds of 490MPa low-alloy structures
Chemical Composition(%)
| Chemical Composition | C | Mn | Si | S | P | Ni | Cr | Mo | V |
| Guarantee Value |
≤ 0.15 |
≤ 1.25 |
≤ 0.90 |
≤0.035 | ≤0.040 |
≤ 0.30 |
≤ 0.20 |
≤ 0.30 |
≤ 0.08 |
| General Result | 0.95 | 0.72 | 0.27 | 0.015 | 0.022 | 0.025 | 0.036 | 0.010 | 0.008 |
Mechanical Properties of Deposited Metal
| Test Item | Rm(MPa) | ReL(MPa) | A(%) |
KV2(J) 0℃ |
| Guarantee Value | ≥490 | ≥400 | ≥20 | ≥47 |
| General Result | 530 | 440 | 26 | 85 |
X-Ray Radio-graphic Test Requirements:Grade II
Reference Current(AC,DC)
| Diameter(mm) | Φ2.5 | Φ3.2 | Φ4.0 | Φ5.0 |
| Amperage(A) | 60~100 | 80~140 | 140~220 | 180~240 |
