Medium Carbon Steel Welding Electrodes E7016 Welding Rod

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS Model Number: E7016

Detail Information

Product Name: Carbon Steel Electrodes E7016 Model: E7016
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Low-Hydrogen
Packing: Plastic Box OEM: Accept
High Light:

E7016 Welding Rod

,

Medium Carbon Steel Welding Electrodes E7016

,

aws e7016 welding electrodes

Product Description

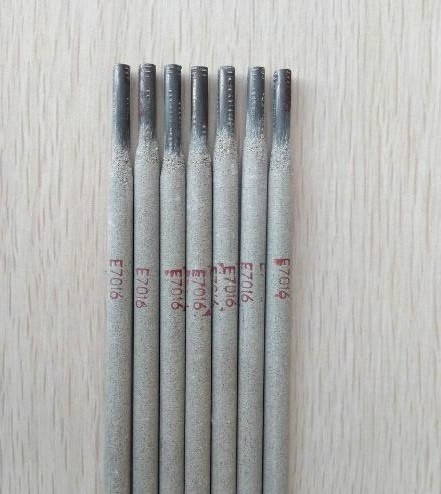

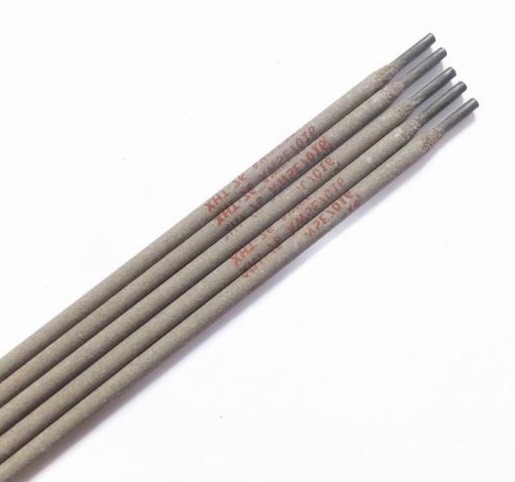

E7016 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes



Mild Steel welding electrode / welding rod E7016 has a coating with low-content hydrogen and sodium. It has excellent plasticity, tenacity and anti-cracking ability in low temperature, good arc stiffness, nearly no magnetic blow.



Conform to Standard

GB/T 5117 E5016

AWS A5.1 E7016

ISO 2560-B-E 49 16 A



Purpose:It is applied in welding medium-carbon steel and low-alloy structures such as 16Mn, 09Mn2Si, 09Mn2V and the steels used in shipbuilding such as A, B, D, E.



Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Mo V
Guarantee Value

0.15

1.60

0.75

≤0.035 ≤0.035

0.30

0.20

0.30

0.08

General Result 0.080 1.05 0.51 0.012 0.020 0.012 0.030 0.007 0.016





Mechanical Properties of Deposited Metal



Test Item Rm(MPa) ReL(MPa) A(%) KV2(J)
-20℃ -30℃
Guarantee Value ≥490 ≥400 ≥20 ≥47 ≥27
General Result 540 430 32 175 169

X-Ray Radio-graphic Test Requirements:Grade I


Reference Current(AC,DC+)

Diameter(mm) Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 60~100 80~140 110~210 160~230



Notes:

1. The electrode must be preheated at the temperature of 350°C for 1 hour. Preheat the rod whenever it is used.

2. The impurities such as rust, oil stains and moisture must be cleared off of the work piece.

3.Short arc is required to perform welding. Narrow weld path is preferred.
