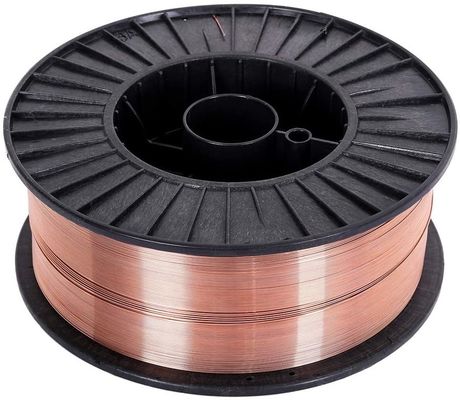

0.024" ER50-3 70s Mig Welding Wire For Galvanized Steel 0.6mm 5kg

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001 Model Number: ER50-3

Detail Information

Product Name: CO2 Gas Shielded Welding Wire ER50-3 Model: ER50-3
Brand: LONGTENG Diameter: 0.8/0.9/1.0/1.2/1.6mm
Weight: 1/5/15/20kg Surface: Cooper Plating
Spool Material: Black Plastic Spool Packing: Color Box
OEM: Accept Diameter Of Spool: 100/200/270/300mm
High Light:

0.024" 70s Mig Welding Wire For Galvanized Steel

,

Mig Welding Wire For Galvanized Steel 0.6mm 5kg

,

mig wire er70s-3

Product Description

ER50-3 0.8/1.0/1.2/1.6MM SOLID WELDING WIRE



Features and Applications:
Welding of thin walled parts
Root pass welding
For making galvanized coating
TIG welding of tubes and pipe
Shielding gases : TIG ; Ar MAG; 20%CO2 - 80% Ar or pure CO2



ER50-3 Conform to Standard :GB/T 8110 ER50-3

Equivalent to : JIS YGW16 / AWS A5.18 ER70S-3

Conform to Standard :ISO 14341-B-GS3





Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Mo V Cu
Guarantee Value 0.06~0.15 0.90~1.40 0.45~0.75 ≤0.025 ≤0.025 ≤0.15 ≤0.15 ≤0.15 ≤0.03 ≤0.50
General Result 0.074 1.15 0.63 0.021 0.02 0.023 0.021 0.023 0.004 0.12



Mechanical Properties of Deposited Metal
Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%) KV2(J)
-20℃
Guarantee Value ≥500 ≥420 ≥22 ≥27
General Result 525 430 28 103,97,100

Reference Current(DC+)
Size(mm) Current range (A) GAS flow rate(L/min)
Φ0.8 50~100 15
Φ1.0 50~220 15~20
Φ1.2 80~350 15~25
Φ1.6 170~550 20~25
