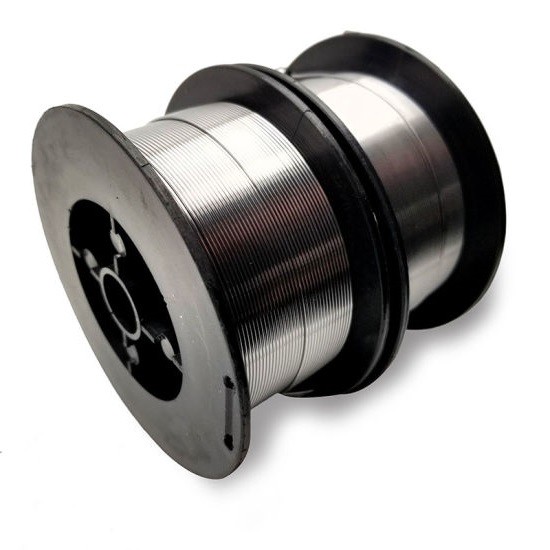

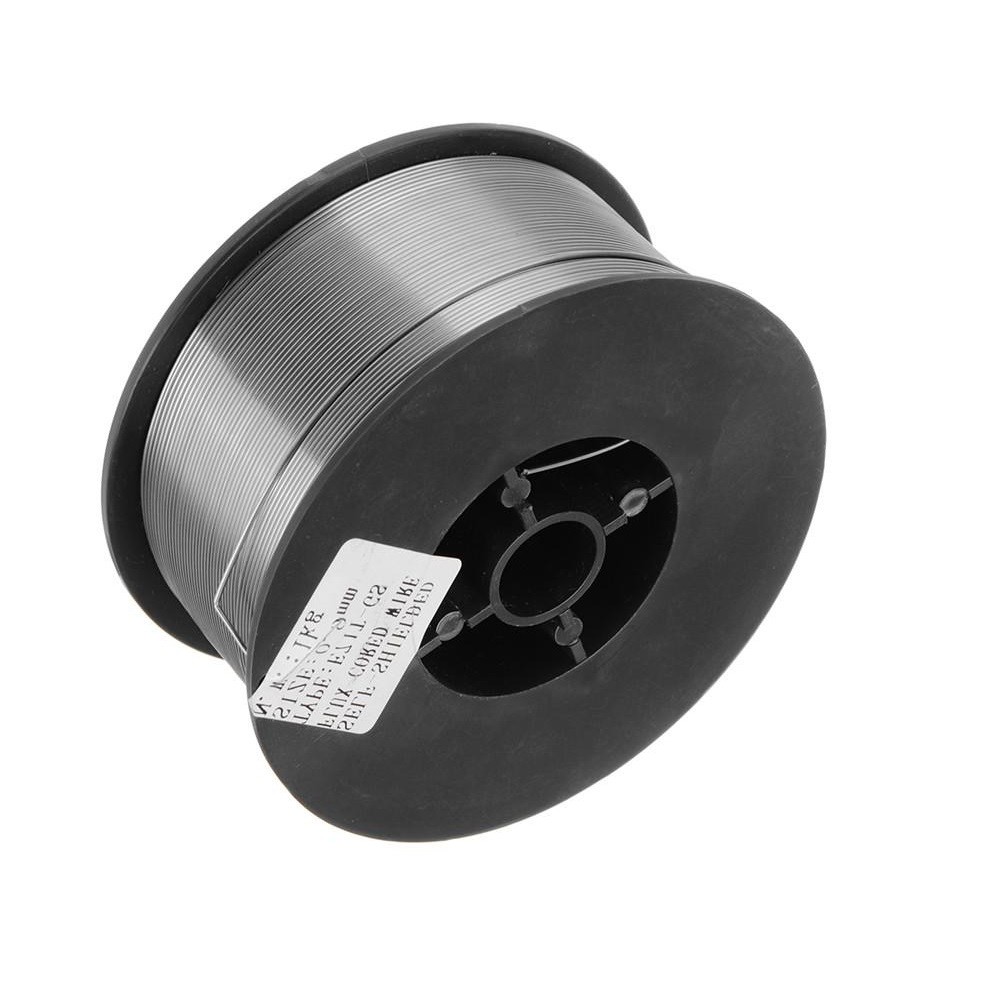

0.8 0.9 1mm 309 Flux Core Welding Wire E71T-GS Self-Shielded

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001 Model Number: E71T-GS

Detail Information

Product Name: Shelf-Shielded Flux Cored Arc Welding Wire E71T-GS Model: E71T-GS
Brand: LONGTENG Diameter: 0.8/0.9/1.0mm
Weight: 1/5/15/20kg Surface: Silvery
Spool Material: Black/White Plastic Spool Packing: Color Box
OEM: Accept Diameter Of Spool: 100/200/270/300mm
High Light:

Shielded Metal Arc Welding Wire


309 Flux Core Welding Wire E71T-GS


E71t Flux Core Wire

Product Description

E71T-GS 0.8/0.9/1.0mm Self-Shielded Flux Cored Arc Welding Wire


Flux Cored Wire AWS A5.20 E71T-GS is an all-position, self-shielded flux-cored wire designed for single pass fillet and lap welding on galvanized or carbon steel as thin as 20 gauge, without burn-through. Gasless Wire E71T-GS is commonly used on small portable 110 volt welding machines, offering smooth arc action with very little spatter. Travel speed is fast, penetration is good and slag removal is easy.


E71T-GS Conform to Standard :GB/T 17493-2008 E501T11-G

AWS A5.36 E71T11-AZ-CS3

Purpose:Used for many kinds of carbon steel base material (Mainly thin plate and galvanized plate),Full position semi-automatic welding, suitable for family type operation.


Chemical Composition(%)

Chemical Composition C Mn Si S P Al
Guarantee Value ≤0.30 ≤1.75 ≤0.60 ≤0.030 ≤0.030 ≤1.80
General Result 0.22 0.62 0.23 0.007 0.008 1.42



Mechanical Properties of Deposited Metal(Shielding)

Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%)
Guarantee Value 480~655 ≥400 ≥20
General Result 620 450 23


Reference Current(DC-)
Size(mm) Welding current(A) Welding voltage(V)
Φ0.8 60~130 14~21
Φ0.9 60~150 15~22
Φ1.0 60~150 15~22
Specification of supply:Φ0.8mm Φ0.9mm Φ1.0mm
