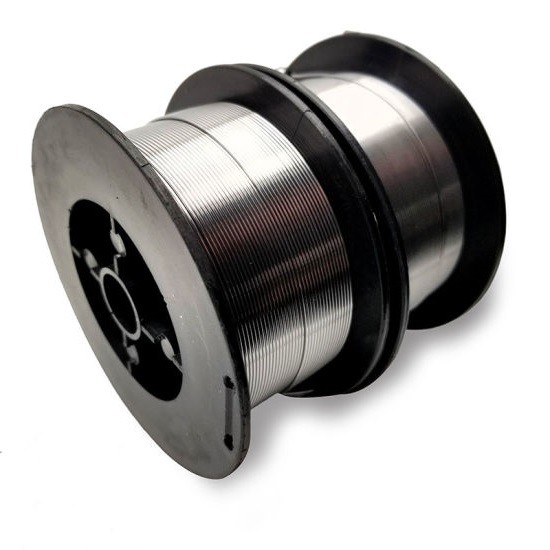

FCAW Flux Cored Arc Welding Wire Reel 15kg Self Shielded .025 .030 E501T11-G

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001 Model Number: E71T-GS

Detail Information

Product Name: Shelf-Shielded Flux Cored Arc Welding Wire E71T-GS Model: E71T-GS
Brand: LONGTENG Diameter: 0.8/0.9/1.0mm
Weight: 1/5/15/20kg Surface: Silvery
Spool Material: Black/White Plastic Spool Packing: Color Box
OEM: Accept Diameter Of Spool: 100/200/270/300mm
High Light:

Self Shielded Welding Wire 15kg

,

0.030 Flux Cored Arc Welding Wire

,

Silvery Welding Wire 15kg

Product Description

FCAW Self Shielded Flux Cored Arc Welding Wire Reel 15kg .025 .030 E501T11-G



LT·E71T-GS 0.8/0.9/1.0mm Self-Shielded Flux Cored Arc Welding Wire



Specification: LT·71T-GS It is a small diameter self-shielded flux-cored wire with direct current connection. Soft and stable arc, small splash, beautiful forming, easy slag removal, small amount of smoke, easy operation, with good welding operation performance.



LT·E71T-GS Conform to Standard :GB/T 17493-2008 E501T11-G

AWS A5.36 E71T11-AZ-CS3


Purpose:AWS A5.20 E71T-GS is a self-shielding all position flux cored welding wire for single pass applications. The use of DC straight polarity minimizes the risk of burn through. It is excellent on lap and fillet welds on thin mild steels.
E71T-GS is most popular for the home workshop welder because it works so well on 110 volt machines and can be used on such thin gauge steel. Gasless Wire E71T-GS is used quite extensively in automobile bodyshops for door or body repairs and it is also used for sheet metal duct work on lap and butt joints.



Chemical Composition(%)

Chemical Composition C Mn Si S P Al
Guarantee Value ≤0.30 ≤1.75 ≤0.60 ≤0.030 ≤0.030 ≤1.80
General Result 0.22 0.62 0.23 0.007 0.008 1.42

Mechanical Properties of Deposited Metal(Shielding)

Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%)
Guarantee Value 480~655 ≥400 ≥20
General Result 620 450 23


Reference Current(DC-)

Size(mm) Welding current(A) Welding voltage(V)
Φ0.8 60~130 14~21
Φ0.9 60~150 15~22
Φ1.0 60~150 15~22


Specification of supply:Φ0.8mm Φ0.9mm Φ1.0mm
