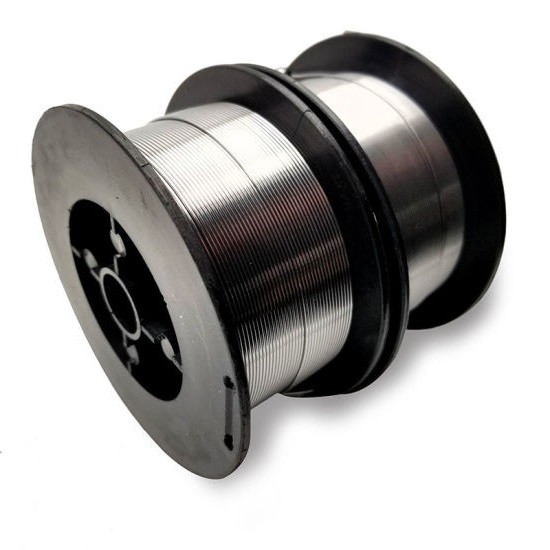

E501Ni Gmaw Flux Cored Arc Welding Wire 5kg CO2 Shielding 0.035" 0.030"

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001 Model Number: E501Ni

Detail Information

Product Name: Gas Shielded Flux Cored Arc Welding Wire E501Ni Model: E501Ni
Brand: LONGTENG Diameter: 1.0/1.2/1.4/1.6mm
Weight: 1/5/15/20kg Surface: Silvery
Spool Material: Black/White Plastic Spool Packing: Color Box
OEM: Accept Diameter Of Spool: 100/200/270/300mm
High Light:

CO2 Shielding 0.35 Flux Core Wire

,

Gmaw Flux Cored Arc Welding Wire

,

035" Flux Cored Arc Welding Wire

Product Description

E501Ni Gmaw Flux Cored Arc Welding Wire 5kg .035" 0.030"



LT*E501Ni E71T1-C1A4-Ni1 1.0/1.2/1.4/1.6mm CO2 Gas Shielded Flux Cored Arc Welding Wire



LT·E501Ni

Conform to Standard :GB/T 17493 E491T1-Ni1C

AWS A5.36 E71T1-C1A4-Ni1

JIS Z3313 T493T1-1CA-N2

ISO 17632-B-T493T1-1CA-N2


Purpose:Most widely used for welding some key structures like shipbuilding, mechanical manufacture, pressure vessels, boilers, petroleum machinery, chemical machinery, hoisting machinery etc.



Specification: LT·E501Ni is a kind of titanium oxide gas shielded( CO2)flux-cored wire,It has excellent welding performance,soft and stable arc, lower spatters, good slag detach ability and beautiful appearance of weld; suitable for all-position welding,It has high welding efficiency. The weld metal has been given toughening treatment by micro-elements.so it has excellent low temperature toughness, good crack-resistance, stable and reliable inherent quality.



Chemical Composition(%)(Shielding Gas:CO2)

Chemical Composition C Mn Si S P Ni Cr Mo V
Guarantee Value

0.12

1.50

0.80

≤0.030 ≤0.030

0.80~

1.10

0.15

0.35

0.05

General Result 0.04 1.28 0.38 0.006 0.011 0.90 - - -





Mechanical Properties of Deposited Metal(Shielding Gas:CO2)



Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%) KV2(J)
-30℃ -40℃
Guarantee Value 490~620 ≥400 ≥20 ≥27 -
General Result 570 510 27 135 120
Diffusion hydrogen content of the deposited metal (Mercury Method)≤10ml/100g


Reference Current(DC+)

Size(mm) Φ1.2 Φ1.4 Φ1.6
Current Range (A) Flat Position 120~300 150~400 180~450
Vertical Upward welding/ Overhead position 120~260 150~270 180~280
Vertical Downward weldingOverhead position 200~300 220~300 250~300
Horizontal Welding 120~280 150~320 180~350





Notes:

1. Adopt degreasing and rust cleaning process before operate.

2. Shielding gas flow: 20-25L/min when welding

3. Extension: 15-25mm

4. The humidity of welding wire storage should be less than 60%

5. Storage period: Vacuum packaging less than 1 Year, other packaging less than half year.
