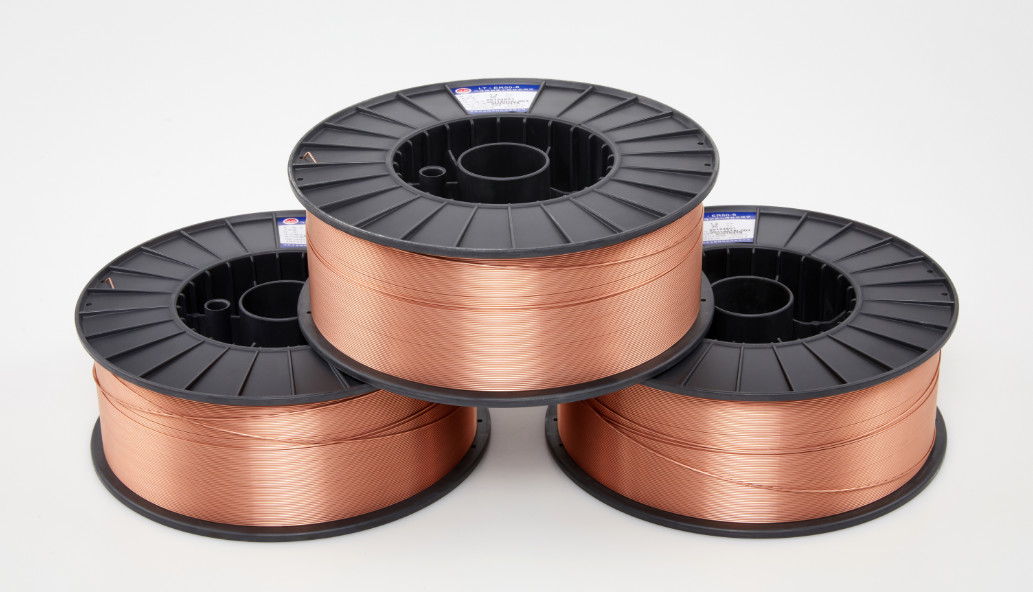

ER50-Ti ER70S-G CO2 Gas Shielded Welding Wire For LCS 0.8mm 1.0mm 1.2mm 1.6mm
ER50-Ti ER70S-G CO2 Gas Shielded Welding Wire For LCS 0.8mm 1.0mm 1.2mm 1.6mm
Contact Now

ER50-Ti ER70S-G CO2 Gas Shielded Welding Wire For LCS 0.8mm 1.0mm 1.2mm 1.6mm

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001 Model Number: ER70S-G (ER50-Ti)

Detail Information
Product Name: CO2 Gas Shielded Welding Wire ER70S-G Model: ER70S-G
Brand: LONGTENG Diameter: 0.8/1.0/1.2/1.6mm
Weight: 1/5/15/20kg Surface: Cooper Plating
Spool Material: Black Plastic Spool Packing: Color Box
OEM: Accept Diameter Of Spool: 100/200/270/300mm
High Light:

0.8mm CO2 gas shielded welding wire

,

1.0mm CO2 gas shielded welding wire

,

1.2mm CO2 gas shielded welding wire

Product Description

[Carbon Steel] ER50-Ti ER70S-G Used For LCS With Strengthened Current 0.8mm 1.0mm 1.2mm 1.6mm



ER50-Ti  ER70S-G  Hot Rolled Low Carbon Iron 5.5mm Steel Wire

Conform to Standard



GB/T 8110 ER50-G

ISO 14341-B-GS11

AWS ER70S-G

JIS YGW11



Specification:The welding current has been strengthened to a great extent and the welding efficiency has been improved. Because the grains of the deposited metal have been refined, both the tensile strength and the yield strength will be improved too.



Slag-forming gas shielded flux-cored wire
CO2 gas shielded flux-cored welding wire, the main varieties are used for carbon steel, 50 kg low alloy structural steel (all-position welding), high strength steel, low temperature steel, heat-resistant steel (1.25Cr-0.5Mo series, 2.25Cr-1Mo series), weathering steel (painted and non-painted), stainless steel (welded SUS304, 304L, 316, 316L, 317, 317L, 321, 347, 309S stainless steel), wear-resistant surfacing (Hv250, Hv350, Hv450, Hv600).
Ar-rich mixed gas shielded flux-cored welding wire, mainly used for carbon steel, 50kg low-alloy structural steel (all-position welding), high-strength steel (60-70kg), low temperature steel (-45°C, -60°C impact toughness), wear-resistant surfacing (13Cr-2Ni series).
Metal powder cored flux cored wire
CO2 gas shielded flux-cored welding wire, the main varieties are used for carbon steel, 50kg low alloy structural steel, high strength steel (60kg), wear-resistant surfacing (high Cr-Fe series, Hv800)
Ar-rich mixed gas shielded flux-cored welding wire, mainly used for carbon steel, 50kg low alloy structural steel, low temperature steel (-60℃ impact toughness), stainless steel (13Cr-5Ni series, 13Cr-4Ni-Mo series, 17Cr series), wear-resistant surfacing (13Mn
series, 16Mn-16Cr series).





Chemical Composition(%)

Chemical Composition C Mn Si S P Ti+Zr Cu
Guarantee Value ≤0.15 1.40~ 0.55~ ≤0.030 ≤0.030 ≤0.30 ≤0.50
1.9 1.1
General Result 0.061 1.44 0.73 0.012 0.009 0.16 0.124



Mechanical Properties of Deposited Metal
Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%) KV2(J)
-30℃
Guarantee Value ≥500 ≥420 ≥22 ≥27
General Result 545 455 29 114/131/127


Reference Current(DC+)

Size(mm) Current range (A) GAS flow rate(L/min)
Φ0.8 50~100 15
Φ1.0 50~220 15~20
Φ1.2 80~350 15~25
Φ1.6 170~550 20~25
