GMAW ER50-6N 0.030" Mild Steel Mig Welding Wire 0.8 Mm 5kg 10kg
Contact Person : Kevin Yin
WhatsApp : +8613812837333
Minimum Order Quantity : | one pallet | Price : | USD 1 |
---|---|---|---|
Packaging Details : | Neutral box/ LT color box/OEM brand box | Delivery Time : | 15 WORKING DAYS |
Supply Ability : | 1,200,000 TON PER YEAR |
Place of Origin: | CHINA | Brand Name: | LONGTENG |
---|---|---|---|
Certification: | ISO9001:2015, TUV CE, ABS, DB | Model Number: | ER70S-4 |
Detail Information |
|||
Product Name: | CO2 Gas Shielded Welding Wire ER70S-4 | Model: | ER70S-4 |
---|---|---|---|
Brand: | LONGTENG | Diameter: | 0.03/0.035/0.045/0.0625(1/16) In |
Weight: | 2/11/33/44 Lb | Surface: | Cooper Plating |
Spool Material: | Black Plastic Spool | Packing: | Color Box |
OEM: | Accept | Diameter Of Spool: | 100/200/270/300mm |
High Light: | 11Lb MIG Welding Wire,ER70S-4 Plastic Spool Welding Wire,0.045 MIG Welding Wire |
Product Description

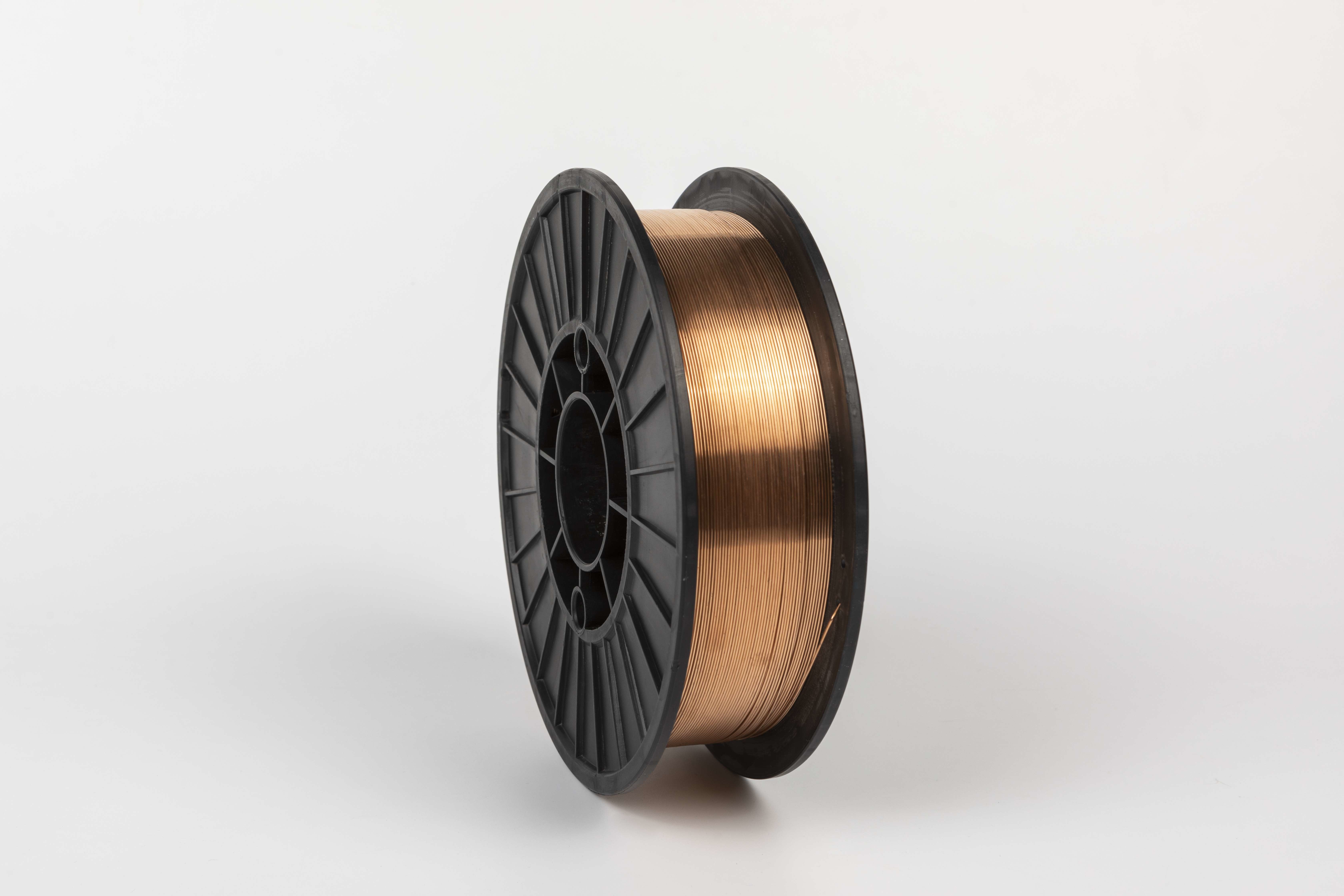

ER70S-4 MIG Welding Wire 0.03/0.035/0.045/(1/16) In 2/11/33/44 Lb
Conform to Standard :GB/T 8110 ER50-4,
ISO 14341-B-GS4, AWS A5.18 ER70S-4, JIS YGW12
Specification:
1. ER70S-4 is a Copper coated carbon steel rod for use in the TIG welding process. Typical tensile strength 490MPa. Ideal for root pass welding of pipes. Suitable for tanks, boilers, steel structural works, earthworks & construction works.
2 .It has CO2 or Ar+CO2 5%-20% as shielding gas. It has excellent welding performance. It has good one-time shaping performance. When used in argon-rich mixed gases arc welding, the bead is delicate and beautiful.
Purpose:
1.Used for welding thin plates.
2.Used for welding steel pipes.
Chemical Composition(%)
Chemical Composition |
C |
Mn |
Si |
S |
P |
Ni |
Cr |
Mo |
V |
Cu |
Guarantee Value |
0.06~0.15 |
1.00~1.50 |
0.65~0.85 |
≤0.025 |
≤0.025 |
≤0.15 |
≤0.15 |
≤0.15 |
≤0.03 |
≤0.50 |
General Result |
0.085 |
1.05 |
0.718 |
0.014 |
0.014 |
0.005 |
0.018 |
0.006 |
0.003 |
0.106 |
Mechanical Properties of Deposited Metal
Test Item |
Rm(MPa) |
ReL/Rp0.2(MPa) |
A(%) |
KV2(J) -30℃ |
Guarantee Value |
≥500 |
≥420 |
≥22 |
No requirements |
General Result |
540 |
450 |
30 |
93,87,95 |
Reference Current(DC+)
Size(mm) |
Current range (A) |
GAS flow rate(L/min) |
Φ0.8 |
50~100 |
15 |
Φ1.0 |
50~220 |
15~20 |
Φ1.2 |
80~350 |
15~25 |
Φ1.6 |
170~550 |
20~25 |
