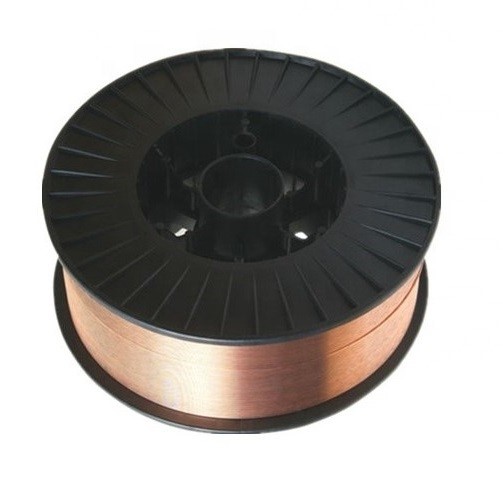

GMAW ER50-6N 0.030" Mild Steel Mig Welding Wire 0.8 Mm 5kg 10kg
Contact Person : Kevin Yin
WhatsApp : +8613812837333
| Minimum Order Quantity : | one pallet | Price : | USD 1 |
|---|---|---|---|
| Packaging Details : | Neutral box/ LT color box/OEM brand box | Delivery Time : | 15 WORKING DAYS |
| Supply Ability : | 1,200,000 TON PER YEAR |
| Place of Origin: | CHINA | Brand Name: | LONGTENG |
|---|---|---|---|
| Certification: | ISO9001:2015, TUV CE, ABS, DB | Model Number: | ER70S-G |
|
Detail Information |
|||
| Product Name: | CO2 Gas Shielded Welding Wire ER70S-G | Model: | ER70S-G |
|---|---|---|---|
| Brand: | LONGTENG | Diameter: | 0.03/0.035/0.045/0.0625(1/16) In |
| Weight: | 2/11/33/44 Lb | Surface: | Cooper Plating |
| Spool Material: | Black Plastic Spool | Packing: | Color Box |
| OEM: | Accept | Diameter Of Spool: | 100/200/270/300mm |
| High Light: | Carbon Steel MIG Welding Wire 200mm,0.035 MIG Welding Wire,44 Lb Steel Welding Wire |
||
Product Description
[Carbon Steel]ER70S-G Mig Welding Wire Used For Welding Low-Carbon Steel & Thin Plates.
ER70S-G 0.8/1.0/1.2/1.6MM SOLID WELDING WIRE
Conform to Standard :ISO 14341-B-GS11
AWS ER70S-G, JIS YGW11
Specification:
ER70S-G Mig Welding Wire is the addition of trace Ti element ER70S-G on the basis of ER70S-6 can help to reduce the spatter in CO2 gas shielded welding. By optimizing the chemical composition of the welding wire, the welding spatter and the weld forming can be matched properly.
Purpose:
1.Used for welding all kinds of 500MPa structural steel parts.
2.It can be applied for high-speed welding steel plate of 500MPa
Chemical Composition(%)
| Chemical Composition | C | Mn | Si | S | P | Ti+Zr | Cu |
| Guarantee Value | ≤0.15 |
1.40~ 1.90 |
0.55~ 1.10 |
≤0.030 | ≤0.030 | ≤0.30 | ≤0.50 |
| General Result | 0.061 | 1.44 | 0.73 | 0.012 | 0.009 | 0.16 | 0.124 |
Mechanical Properties of Deposited Metal
| Test Item | Rm(MPa) | ReL/Rp0.2(MPa) | A(%) |
KV2(J) |
| Guarantee Value | ≥500 | ≥420 | ≥22 | ≥27 |
| General Result | 545 | 455 | 29 | 114,131,127 |
Reference Current(DC+)
| Size(mm) | Current range (A) | GAS flow rate(L/min) |
| Φ0.8 | 50~100 | 15 |
| Φ1.0 | 50~220 | 15~20 |
| Φ1.2 | 80~350 | 15~25 |
| Φ1.6 | 170~550 | 20~25 |
