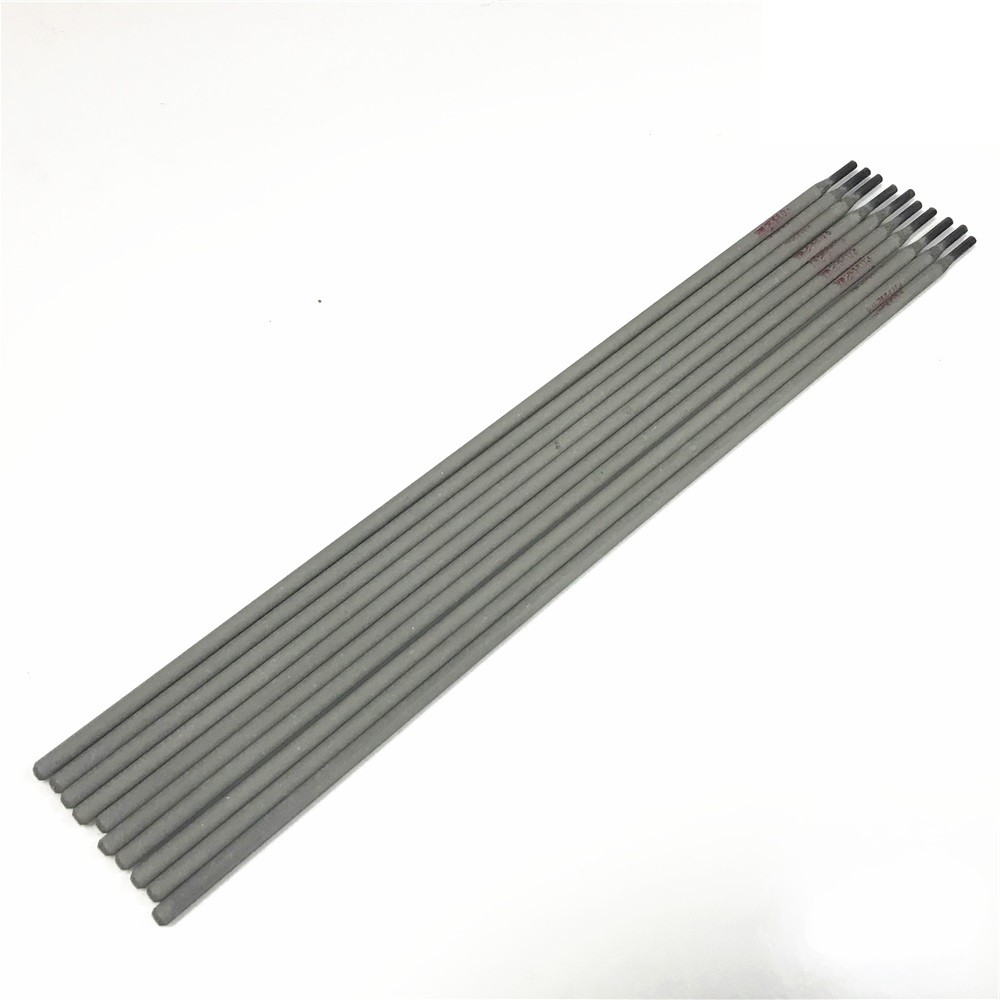

E4303 Welding Electrode Cs Welding Rod For High Carbon Steel Welding Electrodes

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS Model Number: E4303

Detail Information

Product Name: Carbon Steel Electrodes E4303 Model: E4303
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Calcium-Titanium
Packing: Plastic Box OEM: Accept
High Light:

E4303 Cs Welding Rod

,

welding rod e4303

,

e4303 welding rod

Product Description

E4303 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes

LT·J422 Conform to Standard GB/T 5117 E4303

ISO 2560-B-E 43 03 A


Specification:Welding electrode E4303 (J422) is rutile-calcium based carbon steel welding electrode. It has excellent welding performance and mechanical properties that enables to operate on AC/DC, perform all-position welding. It is featured with stable arc, small spatter, easy slag peeling and arc re-striking. Weld bead is smooth and clean. It is flexible in weld ripple width and thickness.



Purpose:GB E4030 is used for welding of low carbon steel structure and low strength grade of low alloy steel structure. Such as Q235, 09Mnv, 09Mn2 etc.



Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Mo V
Guarantee Value

0.20

1.20

1.00

≤0.035 ≤0.040

0.30

0.20

0.30

0.08

General Result 0.077 0.42 0.18 0.018 0.023 0.020 0.032 0.008 0.005





Mechanical Properties of Deposited Metal

Test Item Rm(MPa) ReL(MPa) A(%) KV2(J)
0℃ -20℃
Guarantee Value ≥430 ≥330 ≥20 ≥27 ≥47
General Result 469 385 30 97 70



X-Ray Radio-graphic Test Requirements:Grade II

Reference Current(AC,DC)

Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~70 60~100 80~140 140~220 180~230
