AWS A5.1 E6013 J421 Welding Rod 1/16 2.5mm Low Alloy Steel

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS Model Number: E6013

Detail Information

Product Name: Carbon Steel Electrodes E6013 Model: E6013
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Titanium
Packing: Plastic Box OEM: Accept
High Light:

AWS A5.1 E6013 J421 Welding Rod

,

J421 Steel Welding Electrode

,

2.5mm J421 Welding Rod

Product Description

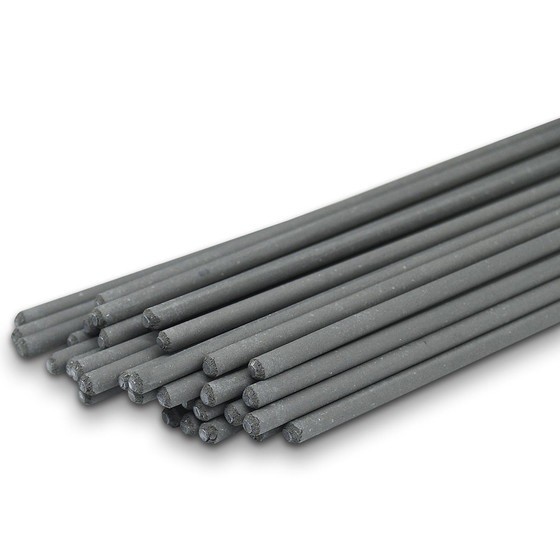

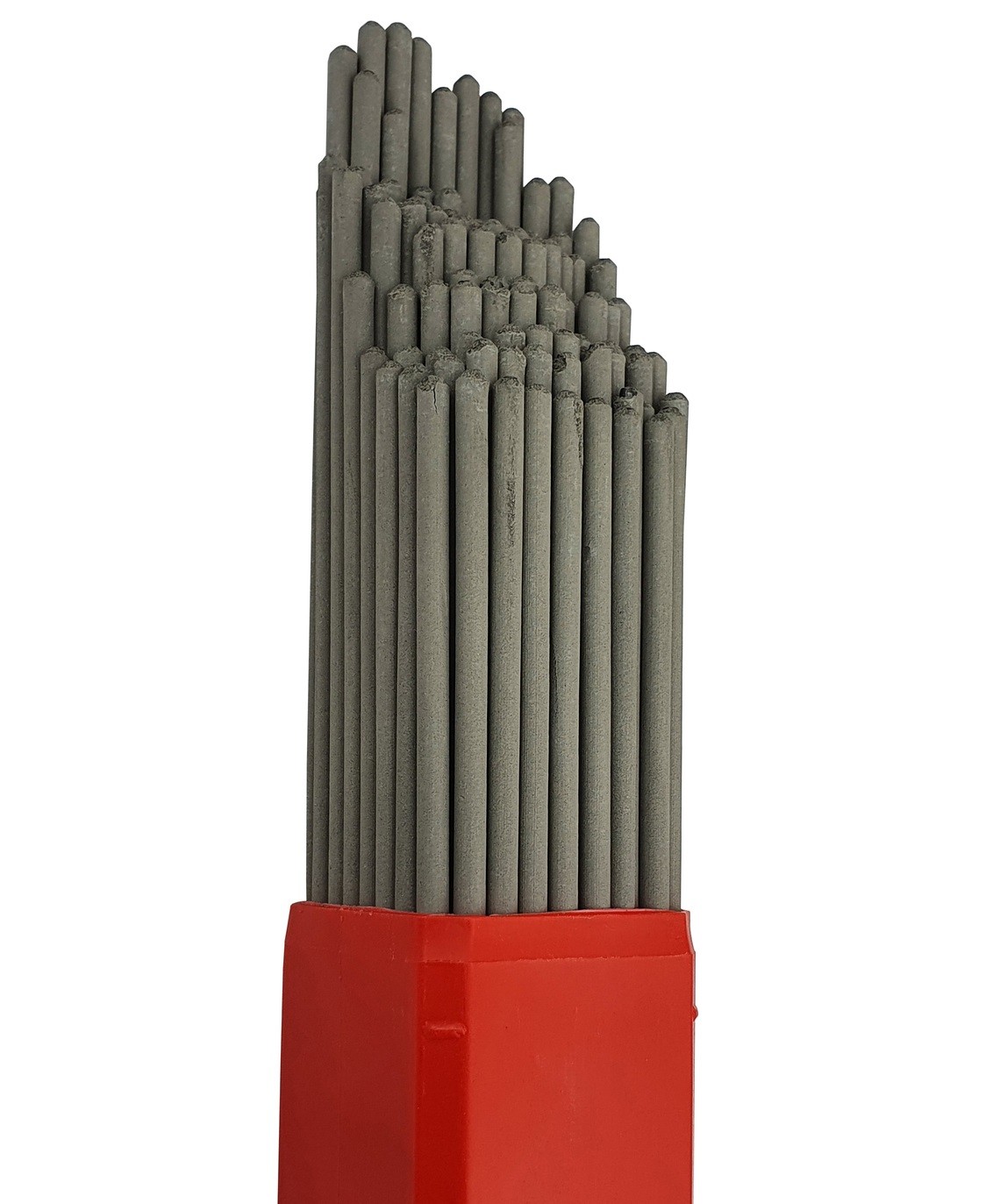

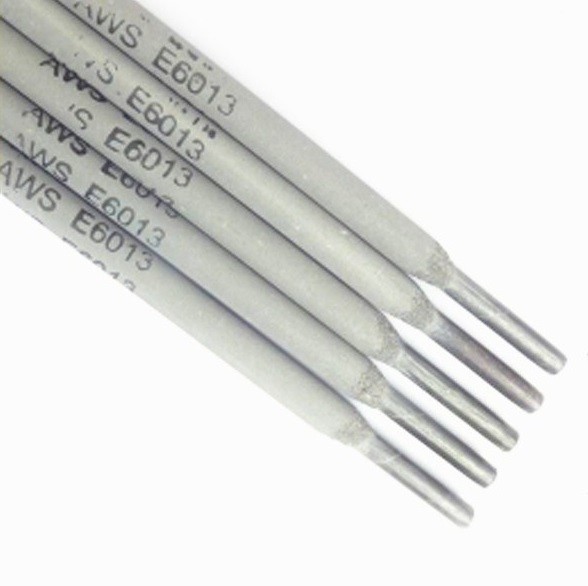

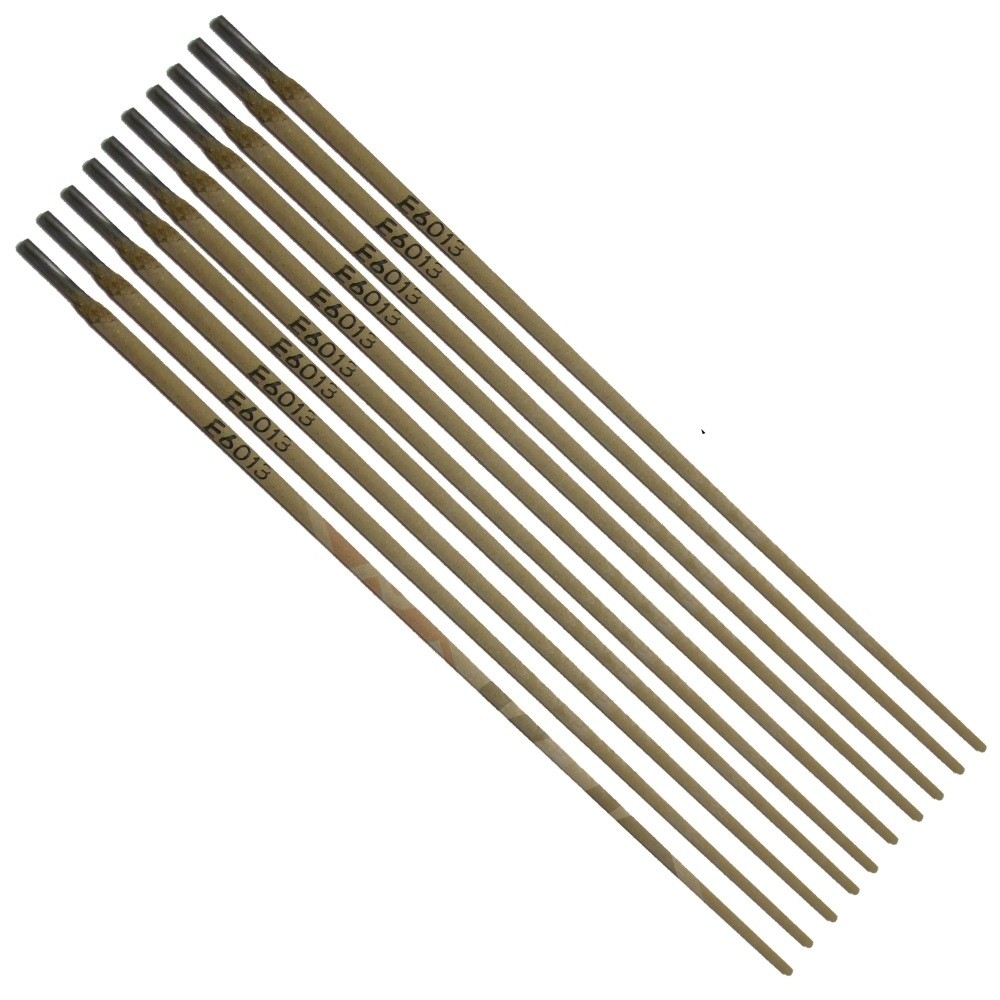

J421 Aws E6013 Welding Rod 1/16 2.5mm Low Alloy Steel Welding Electrode



E6013 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes



E6013 is a mild-steel, all position, general purpose cellulose-base rod. It operates on AC or DC welding current and works well on low voltage AC machines. E6013 is an excellent choice where there is poor fit-up in the joint. It deposits easily and smoothly producing medium to shallow penetration. Small sizes are well adapted to low heat on thin metals. Medium to heavy slag is easily removed and provides for excellent weld cleaning action during the welding process.



Conform to Standard

GB/T 5117 E4313

AWS A5.1 E6013

ISO 2560-B-E 43 13 A


Purpose:It is suitable for welding structures made of low carbon steel, performs very well in welding thin and small size steel plates and also has very good performance in the situation that requires nice and clean bead appearance.



Specification:J421 is rutile-based carbon steel electrode. It has very good welding usability that enables it to perform all-position welding, operates on AC/DC, removal of slag is easy, has stable arc and also has very good bead appearance. It is easy to operate, which makes re-striking the arc easy.



Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Mo V
Guarantee Value

0.20

1.20

1.00

≤0.035 ≤0.040

0.30

0.20

0.30

0.08

General Result 0.075 0.38 0.21 0.018 0.024 0.020 0.032 0.005 0.010





Mechanical Properties of Deposited Metal

Test Item Rm(MPa) ReL(MPa) A(%) KV2(J)
0℃
Guarantee Value ≥430 ≥330 ≥16 ≥47
General Result 485 380 28.5 86



X-Ray Radio-graphic Test Requirements:Grade II


Reference Current(AC,DC)

Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~70 50~90 90~130 130~210 170~230
