5mm 2.5 Mm 1/8" Stainless Steel Welding Rod E347-16 Ss Welding Electrode

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS Model Number: E347-16

Detail Information

Product Name: Stainless Steel Electrodes E347-16 Model: E347-16
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Calcium-Titanium
Packing: Plastic Box OEM: Accept
High Light:

2.5Mm Stainless Steel Welding Rod


E347-16 Stainless Steel Welding Rod


5mm Stainless Steel Electrodes

Product Description

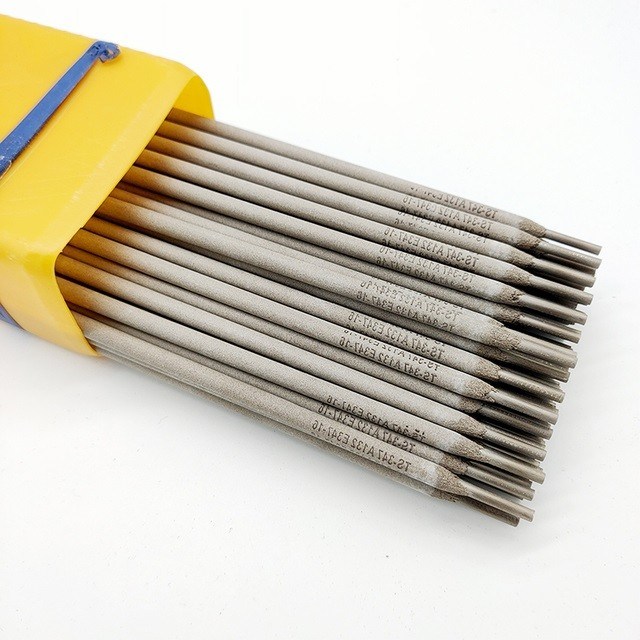

5mm 2.5 Mm 1/8" Stainless Steel Welding Rods E347-16 Ss Welding Electrode


E347-16 2.0/2.5/3.2/4.0/5.0 mm Stainless Steel Electrodes


E347-16 delivers outstanding performance, especially for projects that require you to do a lot of out-of-position welding. This electrode allows you to weld stabilized austenitic 18Cr-8Ni steels, including those with grades of either the columbium (347) or titanium (312) type. E347-16 offer excellent resistance to sensitization during high temperature service.


Conform to Standard

GB/T 983 E347-16

AWS A5.4 E347-16

ISO 3581-A-E(19 9Nb) R 3 2

ISO 3581-B-ES 347-16


Purpose:Used for welding important corrosion resistant stainless steel this contains stable Ti such as 06Cr18Ni11Ti.


Chemical Composition(%)

Chemical Composition C Mn Si S P Cr Ni Mo Cu Nb+Ta
Guarantee Value





≤0.030 ≤0.040









General Result 0.045 1.68 0.76 0.008 0.021 19.80 9.70 0.066 0.105 0.45



Mechanical Properties of Deposited Metal

Test Item Rm(MPa) A(%)
Guarantee Value ≥520 ≥25
General Result 630 41


Reference Current(AC,DC+)
Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~80 50~100 70~130 100~160 140~200




1. The electrode must be preheated at the temperature of 300°C for 1 hour. Preheat the rod whenever it is used

2. Preferred DC power supply, electric current should not be high.
