SS Electrodes A302 GB E309-16 AWS A5.4 E309-16 Calcium Titanium Coated Cr23Ni13

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS Model Number: E309-16

Detail Information

Product Name: Stainless Steel Electrodes LT·A302 Model: E309-16
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Calcium-Titanium
Packing: Plastic Box OEM: Accept
High Light:

OEM SS Electrodes

,

Calcium Titanium Coated SS Electrodes

,

Stainless Steel Electrodes OEM

Product Description

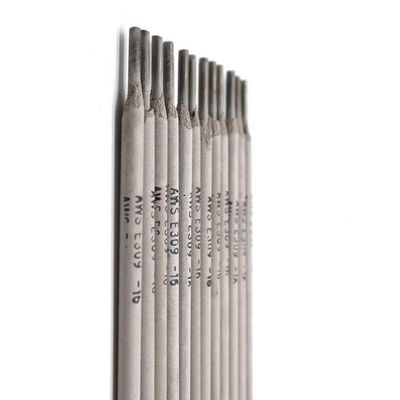

[SS Electrodes] A302 GB E309-16 AWS A5.4 E309-16 Calcium-Titanium Coated,Cr23Ni13 Stanless Steel Electrode



E309-16 2.0/2.5/3.2/4.0/5.0 mm Stainless Steel Electrodes



Conform to Standard

GB/T 983 E309-16

AWS A5.4 E309-16

ISO 3581-A-E(22 12) R 3 2

ISO 3581-B-ES 309-16



Specification:A302 is a, calcium-titanium coated, Cr23Ni13 stainless steel electrode. The deposited metal has good crack-resistance and oxidation resistance. The electrode can operate on AC/DC. It is easy to operate.

Purpose:It is used in similar type stainless steel, dissimilar stainless steel and high chromium steel and high manganese steel.



Chemical Composition(%)

Chemical Composition C Mn Si S P Cr Ni Mo Cu
Guarantee Value

0.15

0.50~

2.50

1.00

≤0.030 ≤0.040

22.0~

25.0

12.0~

14.0

0.75

0.75

General Result 0.055 1.25 0.65 0.009 0.021 24.25 12.52 0.30 0.10





Mechanical Properties of Deposited Metal

Test Item Rm(MPa) A(%)
Guarantee Value ≥550 ≥25
General Result 590 38





Reference Current(AC,DC+)
Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~80 50~100 70~130 100~160 140~200





Notes:

1.The electrode must be preheated at the temperature of 300°C for 1 hour.

2.The impurities such as rust, oil stains and moisture must be cleared off of the work piece.
