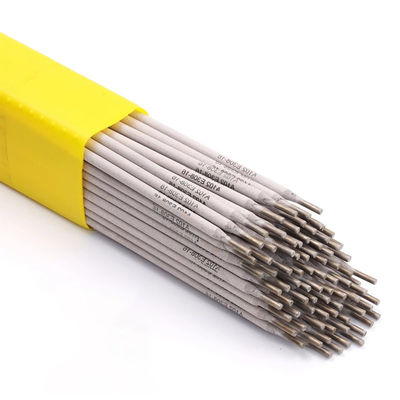

E347-16 347 Stainless Steel Welding Rod 1/16" 1/8" 1.6MM 2.0MM 2.5MM
E347-16 347 Stainless Steel Welding Rod 1/16" 1/8" 1.6MM 2.0MM 2.5MM E347-16 347 Stainless Steel Welding Rod 1/16" 1/8" 1.6MM 2.0MM 2.5MM E347-16 347 Stainless Steel Welding Rod 1/16" 1/8" 1.6MM 2.0MM 2.5MM
Contact Now

E347-16 347 Stainless Steel Welding Rod 1/16" 1/8" 1.6MM 2.0MM 2.5MM

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS Model Number: E347-16

Detail Information
Product Name: Stainless Steel Electrodes LT·A132 Model: E347-16
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Calcium-Titanium
Packing: Plastic Box OEM: Accept
High Light:

1.6MM Stainless Steel Welding Rod

,

1/8" Stainless Steel Welding Rod

,

E347-16 Stainless Steel Welding Rod

Product Description

E347-16 347 Stainless Steel Welding Rod 1/16" 1/8" 1.6MM 2.0MM 2.5MM



E347-16 2.0/2.5/3.2/4.0/5.0 mm Stainless Steel Electrodes

Descrption of Stainless Steel Electrodes





Conform to Standard

GB/T 983 E347-16

AWS A5.4 E347-16

ISO 3581-A-E(19 9Nb) R 3 2

ISO 3581-B-ES 347-16



Specification:A132 is a kind of Titanium calcium type coating Cr19Ni10Nb which contains the Nb stabilizing property. It has excellent mechanical properties and inter granular corrosion resistance.  Heat resistance coating and crack resistance. AC/DC both can be applied.



Chemical Composition(%)

Chemical Composition C Mn Si S P Cr Ni Mo Cu Nb+Ta
Guarantee Value

≤

0.08

0.50~

2.50

≤

1.00

 ≤0.030 ≤0.040

18.0~

21.0

9.0~

11.0

≤

0.75

≤

0.75

8×C~

1.00
General Result 0.045 1.68 0.76 0.008 0.021 19.80 9.70 0.066 0.105 0.45





Mechanical Properties of Deposited Metal

Test Item Rm(MPa) A(%)
Guarantee Value ≥520 ≥25
General Result 630 41



Reference Current(AC,DC+)
Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~80 50~100 70~130 100~160 140~200





Notes:

1. The electrode must be preheated at the temperature of 300°C for 1 hour. Preheat the rod whenever it is used

2. Preferred DC power supply, electric current should not be high.
