Cs Welding Rod For Low Carbon Steel Welding Electrodes J502
Contact Person : Kevin Yin
WhatsApp : +8613812837333
| Minimum Order Quantity : | one pallet | Price : | USD 1 |
|---|---|---|---|
| Packaging Details : | Neutral box/ LT color box/OEM brand box | Delivery Time : | 15 WORKING DAYS |
| Supply Ability : | 1,200,000 TON PER YEAR |
| Place of Origin: | CHINA | Brand Name: | LONGTENG |
|---|---|---|---|
| Certification: | TUV CE, ABS, DB, ISO9001,CCS | Model Number: | E5003 |
|
Detail Information |
|||
| Product Name: | Carbon Steel Electrodes E5003 | Model: | E5003 |
|---|---|---|---|
| Brand: | LONGTENG | Diameter: | 2.0/2.5/3.2/4.0/5.0 |
| Weight: | 5kg | Type Of Coating: | Calcium-Titanium |
| Packing: | Plastic Box | OEM: | Accept |
| High Light: | Calcium Titanium Coated Cs Electrode,E5003 Cs Electrode,Carbon Steel Electrodes E5003 |
||
Product Description

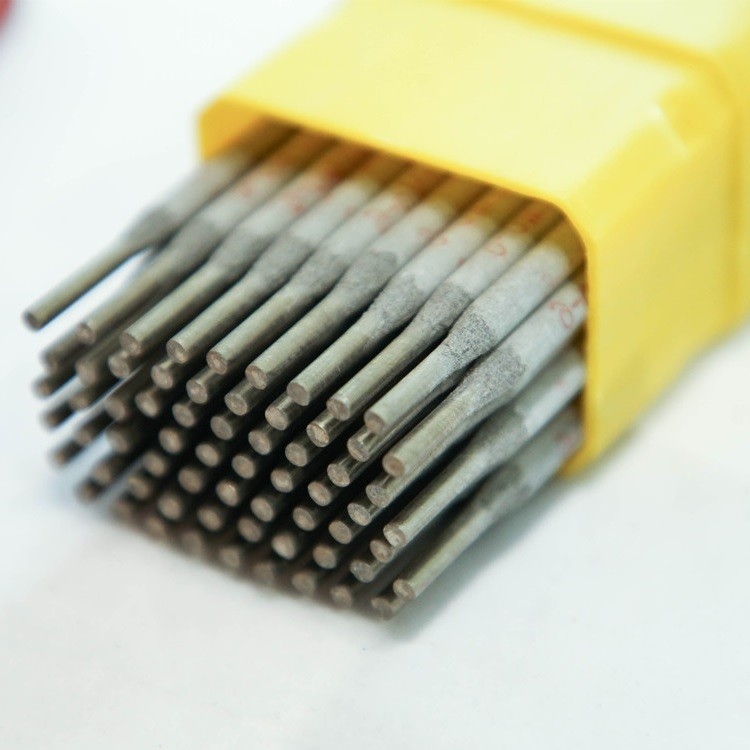

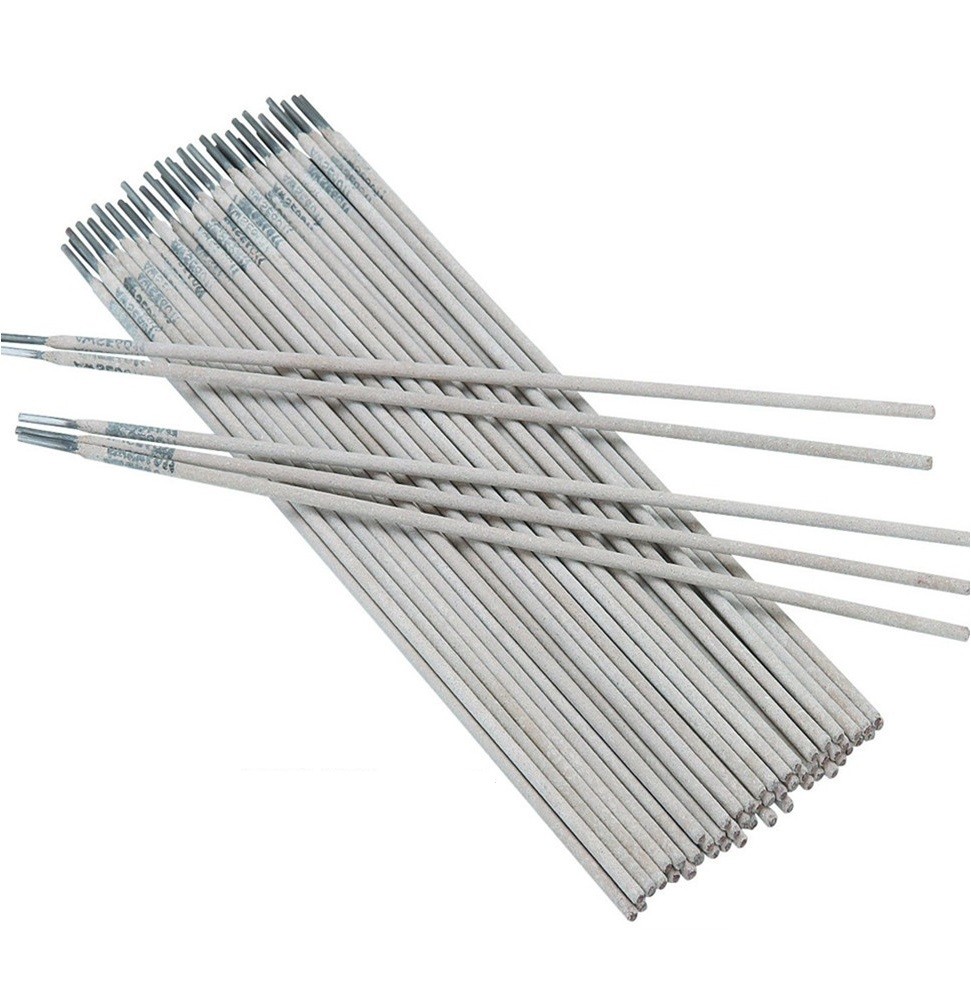

[CS Electrodes]J502 E5003 Calcium-Titanium Coated Cs Electrode Used For Welding All Kinds Of 490MPa Low-Alloy Structrues
LT·J502 E5003 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes
Specification:E5003 is calcium-titanium coated carbon steel electrode. It has very good welding usability that enables it to operate on AC/DC, performs all-position welding, has stable arc, removal of slag is easy and has good bead appearance. Its good mechanical properties give it very good low temperature toughness. During the application, its characteristic of easy maneuverability offers easy striking, easy re-striking and good control of welding speed, which enables the welders to have desired weld path and penetration of the arc.
Welding electrode J502 (E5003) is rutile-calcium based for mild steel and low alloy steel. It could operate on DC/AD, and perform all-position welding. Electrode J502 has excellent welding performance and mechanical properties that enable stable arc, small spatter, easy slag peeling, smooth weld bead.
Chemical Composition(%)
| Chemical Composition | C | Mn | Si | S | P | Ni | Cr | Mo | V |
| Guarantee Value |
≤ 0.15 |
≤ 1.25 |
≤ 0.90 |
≤0.035 | ≤0.040 |
≤ 0.30 |
≤ 0.20 |
≤ 0.30 |
≤ 0.08 |
| General Result | 0.95 | 0.72 | 0.27 | 0.015 | 0.022 | 0.025 | 0.036 | 0.010 | 0.008 |
Mechanical Properties of Deposited Metal
| Test Item | Rm(MPa) | ReL(MPa) | A(%) | KV2(J) |
| 0℃ | ||||
| Guarantee Value | ≥490 | ≥400 | ≥20 | ≥47 |
| General Result | 530 | 440 | 26 | 85 |
Reference Current(AC,DC)
| Diameter(mm) | Φ2.0 | Φ2.5 | Φ3.2 | Φ4.0 | Φ5.0 |
| Amperage(A) | 40~70 | 60~100 | 80~140 | 140~220 | 180~240 |
