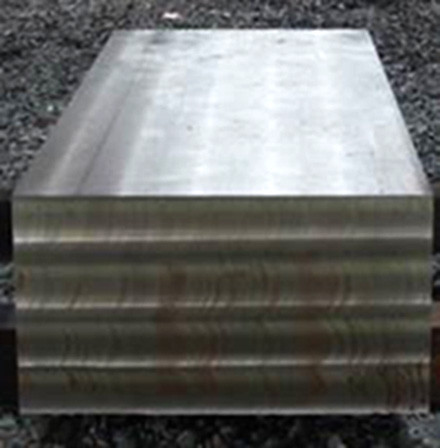

1.2311 Plastic Mold Steel 3Cr2Mo P20 ASSAB-618 400≥

Product Description

1.2311 MOLD STEEL

Standard: equivalent to China 3Cr2Mo, Sweden (ASSAB) 618, United States P20, Japan (Hitachi) HPM2

1.2311 mold steel has good comprehensive mechanical properties, high hardenability, and good polishing performance. It can achieve relatively uniform hardness for large-section steel (with a maximum pre hardening thickness of 700mm), which not only ensures the performance of the mold, but also reduces the production cycle and cost of the mold.

Main application: mainly used for molds with high surface finish requirements (such as home appliance shells and automotive interiors)
Ornaments, etc.), this steel grade is suitable for making large and medium-sized plastic molds.

Chemical composition

Physical properties: the physical properties of 1.2311 steel are shown in the table below, with its density of 7.81Kg/m3, elastic modulus (room temperature) E: 21200MPa, trimming modulus (room temperature) G: 825x103 MPa, and Poisson's ratio's ratio u: 0.288.

Supply hardness: pre hardened (quenched and tempered): HRC28-35

Heat treatment

Heat treatment after forging (normalizing+tempering)

X100 (grain size): Grade 7

X100 (grain size): Grade 7.5

X500 (microstructure): Tempered Soxhlet

1. No sand hole;
2. No scratches;
3. Very few non-metallic materials;
4. Homogeneous structure (no segregation, etc.)
5. Fine crystal grain size (no coarse grain);
6. Appropriate hardness;
7. Appropriate mechanical properties.
