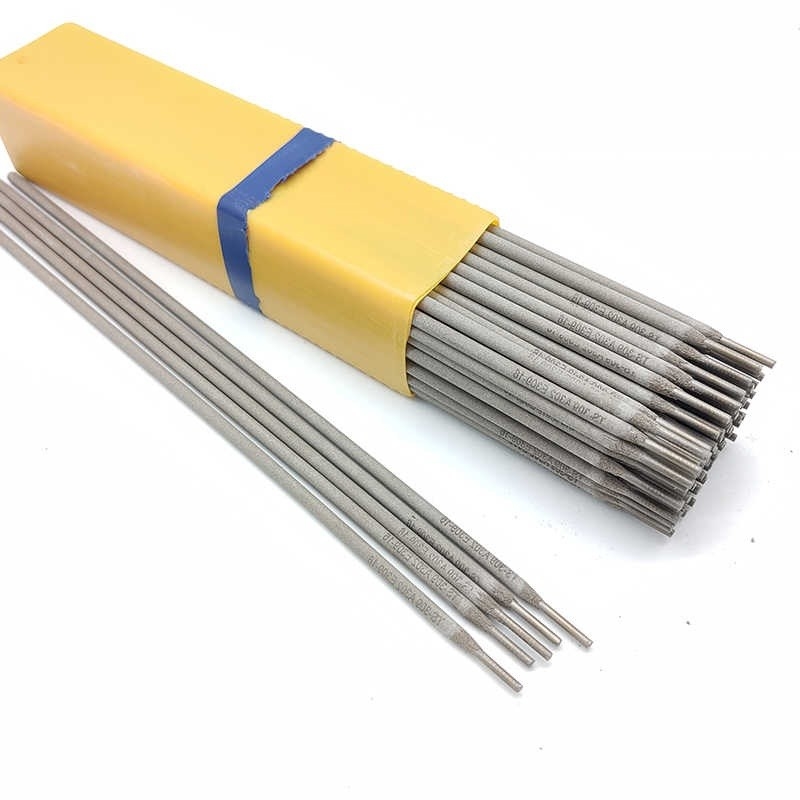

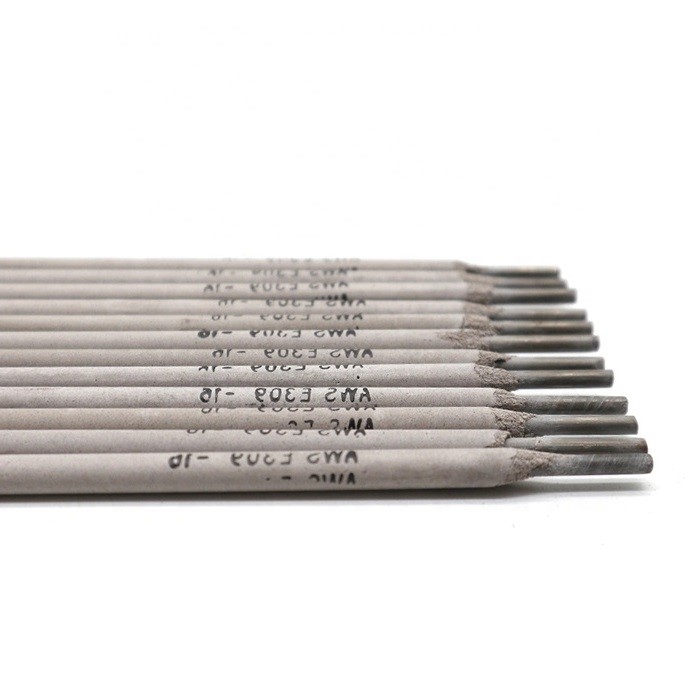

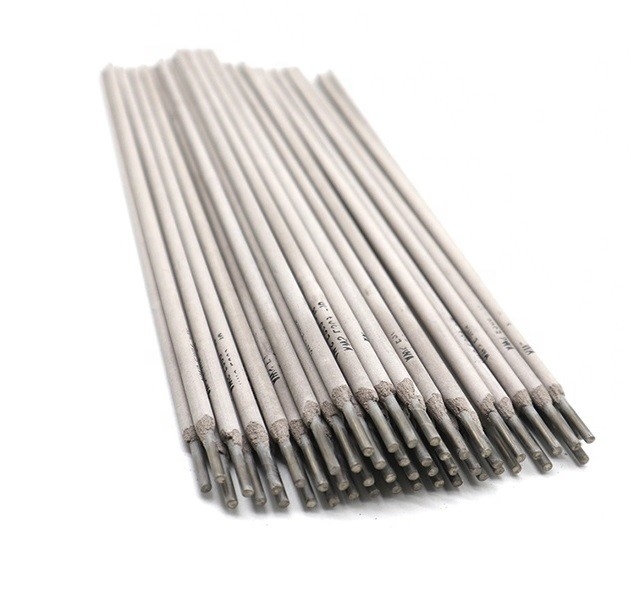

A302 Aws E309-16 309 Stainless Steel Welding Rod Stick Electrodes

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS Model Number: LT·A302

Detail Information

Product Name: Stainless Steel Electrodes LT·A302 Model: LT·A302
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Calcium-Titanium
Packing: Plastic Box OEM: Accept
High Light:

309 stainless steel stick welding rod

,

Aws E309-16 309 Stainless Steel Welding Rod

,

309 Ss Welding Rod

Product Description

LT·A302 2.0/2.5/3.2/4.0/5.0 mm Stainless Steel Electrodes



E309-16 is primarily intended for welding heat resistant austenitic Chromium-Nickel steels of similar analysis such as AISI 309 or 309S. Also suitable for joining dissimilar metals such as 18Cr-8Ni stainless steel to mild steel and welding clad surfaces of steel.



Conform to Standard

GB/T 983 E309-16

AWS A5.4 E309-16

ISO 3581-A-E(22 12) R 3 2

ISO 3581-B-ES 309-16



Purpose:It is used in similar type stainless steel, dissimilar stainless steel and high chromium steel and high manganese steel.



Chemical Composition(%)

Chemical Composition C Mn Si S P Cr Ni Mo Cu
Guarantee Value

0.15

0.50~

2.50

1.00

≤0.030 ≤0.040

22.0~

25.0

12.0~

14.0

0.75

0.75

General Result 0.055 1.25 0.65 0.009 0.021 24.25 12.52 0.30 0.10





Mechanical Properties of Deposited Metal

Guarantee Value ≥550 ≥25
General Result 590 38





Reference Current(AC,DC+)
Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~80 50~100 70~130 100~160 140~200





Notes:

1.The electrode must be preheated at the temperature of 300°C for 1 hour.

2.The impurities such as rust, oil stains and moisture must be cleared off of the work piece.
