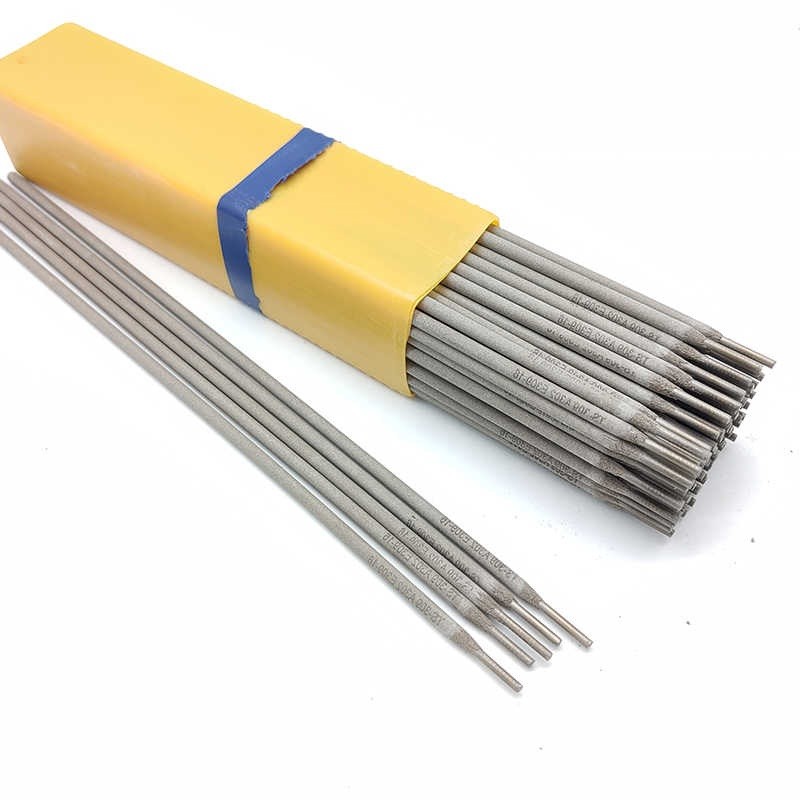

E347-16 347 Stainless Steel Welding Rod 1/16" 1/8" 1.6MM 2.0MM 2.5MM

Minimum Order Quantity : one pallet Price : USD 1
Packaging Details : Neutral box/ LT color box/OEM brand box Delivery Time : 15 WORKING DAYS
Supply Ability : 1,200,000 TON PER YEAR
Place of Origin: CHINA Brand Name: LONGTENG
Certification: TUV CE, ABS, DB, ISO9001,CCS Model Number: E347-16

Detail Information

Product Name: Stainless Steel Electrodes LT·A132 Model: E347-16
Brand: LONGTENG Diameter: 2.0/2.5/3.2/4.0/5.0
Weight: 5kg Type Of Coating: Calcium-Titanium
Packing: Plastic Box OEM: Accept
High Light:

1/8 Ss Welding Rod

,

e347-16 welding rod

,

E347-16 347 Stainless Steel Welding Rod

Product Description

E347-16 2.0/2.5/3.2/4.0/5.0 mm Stainless Steel Electrodes

Conform to Standard

GB/T 983 E347-16

AWS A5.4 E347-16

ISO 3581-A-E(19 9Nb) R 3 2

ISO 3581-B-ES 347-16



Purpose:Used for welding important corrosion resistant stainless steel this contains stable Ti such as 06Cr18Ni11Ti.



Specification:A132 is a kind of Titanium calcium type coating Cr19Ni10Nb which contains the Nb stabilizing property. It has good mechanical properties and inter granular corrosion resistance. Good welding performance and porosity resistance. Heat resistance coating and crack resistance. AC/DC both can be applied.



Chemical Composition(%)

Chemical Composition C Mn Si S P Cr Ni Mo Cu Nb+Ta
Guarantee Value

0.08

0.50~

2.50

1.00

≤0.030 ≤0.040

18.0~

21.0

9.0~

11.0

0.75

0.75

8×C~

1.00

General Result 0.045 1.68 0.76 0.008 0.021 19.80 9.70 0.066 0.105 0.45





Mechanical Properties of Deposited Metal

Test Item Rm(MPa) A(%)
Guarantee Value ≥520 ≥25
General Result 630 41



Reference Current(AC,DC+)
Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~80 50~100 70~130 100~160 140~200





Notes:

1.The electrode must be preheated at the temperature of 300°C for 1 hour. Preheat the rod whenever it is used

2.Preferred DC power supply, electric current should not be high.
